Nylon Kevlar Mower Belts , industrial timing belt Low Stretch

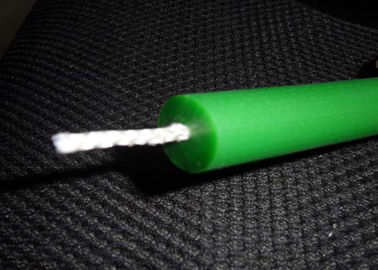

Gambar besar : Nylon Kevlar Mower Belts , industrial timing belt Low Stretch

Detail produk:

Place of Origin:	China
Nama merek:	Jiuna
Sertifikasi:	ROHS
Model Number:	Diameter 5mm~20mm
Hardness:	85 shore A ~90 shore A
Length:	100 meter /rolls
color:	green

Syarat-syarat pembayaran & pengiriman:

Minimum Order Quantity:	1000 Meter
Packaging Details:	Inner packing is plastic film .outer packing is carton
Delivery Time:	Within 5 working days After receipt of your deposit
Payment Terms:	T/T, 50% payment in advance ,50% balance before shipment
Supply Ability:	96.000 meters per Month
Export port:	shanghai
Factory:	Wuxi City

Kontak

Detil Deskripsi produk

Cahaya Tinggi:

Reinforced cord belt

polyurethane flat belt

Nylon Kevlar Mower Belts , industrial timing belt Low Stretch

Nylon cord belt Feature :

1. Available in round or V-sections

2. Low Stretch,anti-abrasion

3. Can be cogged for increased flexibility

4. Easily made endless with a Drive welding Kit

polyurethane belt Application :

1 The elevator slide shaft

2. Medium- to heavy-duty applications

3. Conveying or diverging applications, product sizing

4. For conveying wood, laminate, roof and ceiling tile

Item φ	least radius of gyration		stretch rate	Maximum tensile rate		Hardness	length of rolled
DIA (mm)	In	mm	Stretching rate	Kg	Lbs	Hardness (A)	Roll (m)
5mm	1.57	40	1.5-3%	2.0	4.3	85	100
6mm	1.97	50	1.5-3%	3.2	7.0	85	100
7mm	2.17	55	1.5-3%	4.1	9.0	85	100
8mm	2.56	65	1.5-3%	5.0	11.0	85	100
9mm	2.95	75	1.5-3%	6.8	15.0	85	50
10mm	2.95	75	1.5-3%	7.7	17.0	85	50
12mm	3.94	100	1.5-3%	12.2	27.0	85	30
15mm	4.72	120	1.5-3%	17.7	39.0	85	30
18mm	5.71	145	1.5-3%	25.4	56.0	85	30
20mm	6.30	160	1.5-3%	31.3	69.0	85	30
