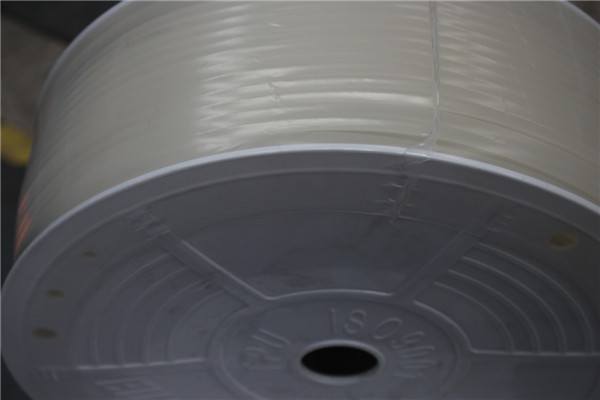

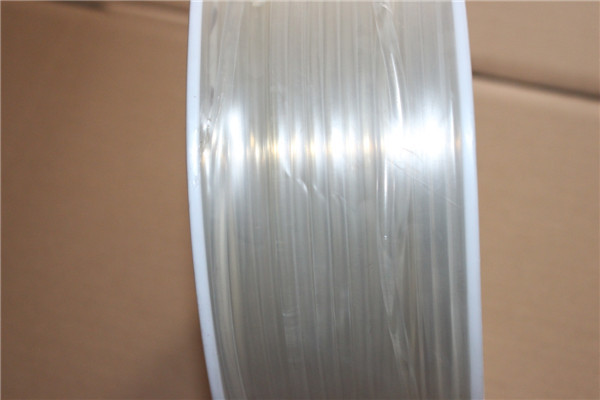

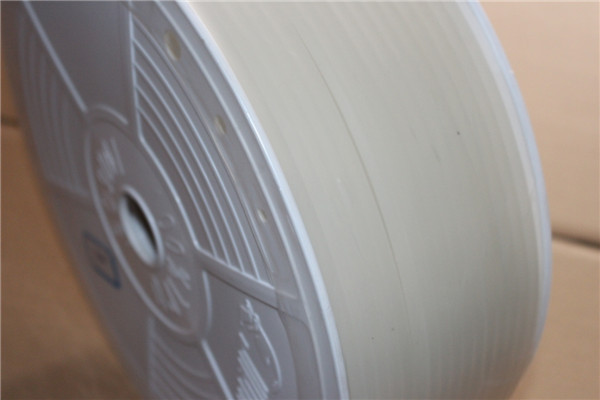

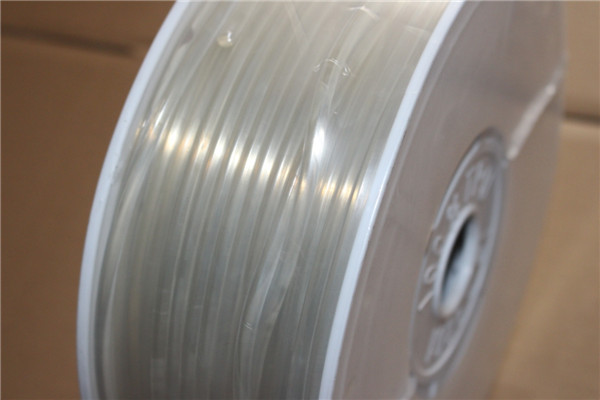

White Tear Resistance Polyurethane PU Round Belt Rough Surface For Transmission

Cina Wuxi Jiunai Polyurethane Products Co., Ltd Sertifikasi
Cina Wuxi Jiunai Polyurethane Products Co., Ltd Sertifikasi
Customer satisfaction products , good service !

—— Mr. Alcioni possamai

we are very impressed with the quality of the belts you produced.

—— Mr.Mike

your products are very popular in my markets.

—— Mr. jone

I 'm Online Chat Now

White Tear Resistance Polyurethane PU Round Belt Rough Surface For Transmission

White Tear Resistance Polyurethane PU Round Belt  Rough Surface For Transmission
White Tear Resistance Polyurethane PU Round Belt  Rough Surface For Transmission White Tear Resistance Polyurethane PU Round Belt  Rough Surface For Transmission White Tear Resistance Polyurethane PU Round Belt  Rough Surface For Transmission White Tear Resistance Polyurethane PU Round Belt  Rough Surface For Transmission

Gambar besar :  White Tear Resistance Polyurethane PU Round Belt Rough Surface For Transmission

Detail produk:
Place of Origin: wuxi city of china
Nama merek: jiuna
Sertifikasi: ROHS
Model Number: diamter 3mm-20mm
Syarat-syarat pembayaran & pengiriman:
Minimum Order Quantity: 2000m
Packaging Details: nner packing is plastic film .outer packing is carton
Delivery Time: Within 7 working days After receipt of your deposit
Payment Terms: T/T, Western Union
Supply Ability: 96.000 meters per Month
Detil Deskripsi produk
color: any color material: PU
hardness: 78A-98A heat-resistant moderate temperature: -50 ℃ to + 85 ℃
stretching rate: 1.5-3% tensile rate: 0.7-69 Lbs
Cahaya Tinggi:

pu round belt

,

sabuk putaran hijau

Tear Resistance Polyurethane PU Round Belt  Rough Surface For Transmission



Items No. φ least radius of gyration stretch rate Maximum tensile rate Hardness length of rolled

DIA

(mm)

In mm Stretching rate Kg Lbs

Hardness

(A)

Roll

(m)

2 0.79 20 1.5-3% 0.3 0.7 90 400
3 0.98 25 1.5-3% 0.7 1.6 90 400
4 1.38 35 1.5-3% 1.2 2.7 85 200
5 1.57 40 1.5-3% 2.0 4.3 85 100
6 1.97 50 1.5-3% 3.2 7.0 85 100
7 2.17 55 1.5-3% 4.1 9.0 85 100
8 2.56 65 1.5-3% 5.0 11.0 85 100
9 2.95 75 1.5-3% 6.8 15.0 85 50
10 2.95 75 1.5-3% 7.7 17.0 85 50
12 3.94 100 1.5-3% 12.2 27.0 85 30
15 4.72 120 1.5-3% 17.7 39.0 85 30
18 5.71 145 1.5-3% 25.4 56.0 85 30
20 6.30 160 1.5-3% 31.3 69.0 85

30



Details:

(1)Thermoplastic polyurethane material, easy to be melted jointed

(2)Reinforced by Polyester Cord or Steel Cord

(3)Temperature range -35°C - 80°C

(4)Shore A hardness range 80A - 98A

(5)With excellent resistance to flex, abrasion resistance, easy jointed and other characteristics. Widely used in textile, packaging, printing, machinery, electronic, glass, chemicals, ceramics and other industries, especially in the ceramic industry, widely used in the facilities line the glaze, polishing lines, and transmission line.

(6)Round Belt:

Round Belt Dia. is from 2mm to 30mm

Smooth Belt with good surface finish; Rough belt with even surface roughness. They are used widely



Features:

Outstanding abrasion resistance
High tensile and tear strength
Resistance to oils, fuels,and oxygen
Good weatherability and high impact resistance
Low compression set

Application:

Newspaper conveying,
Packing machines,
Ceramic and stoneware processing plants,
Floor and roof tiles conveying,
Wood Working machineries,
Textile machines,
Paper industry machines,
Food grading machines, other food processing machines.



.White Tear Resistance Polyurethane PU Round Belt  Rough Surface For Transmission 0White Tear Resistance Polyurethane PU Round Belt  Rough Surface For Transmission 1
