80A - 98A Polyurethane Round Belt For Printing And Packing Machine

Cina Wuxi Jiunai Polyurethane Products Co., Ltd Sertifikasi
Cina Wuxi Jiunai Polyurethane Products Co., Ltd Sertifikasi
Customer satisfaction products , good service !

—— Mr. Alcioni possamai

we are very impressed with the quality of the belts you produced.

—— Mr.Mike

your products are very popular in my markets.

—— Mr. jone

I 'm Online Chat Now

80A - 98A Polyurethane Round Belt For Printing And Packing Machine

80A - 98A Polyurethane Round Belt For Printing And Packing Machine
80A - 98A Polyurethane Round Belt For Printing And Packing Machine 80A - 98A Polyurethane Round Belt For Printing And Packing Machine 80A - 98A Polyurethane Round Belt For Printing And Packing Machine 80A - 98A Polyurethane Round Belt For Printing And Packing Machine

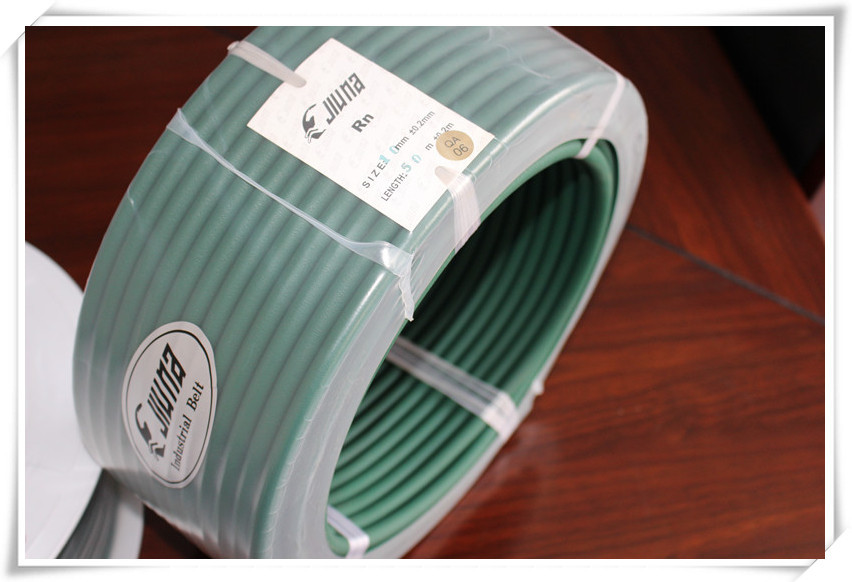

Gambar besar :  80A - 98A Polyurethane Round Belt For Printing And Packing Machine

Detail produk:
Place of Origin: china
Nama merek: jiuna
Sertifikasi: ROHS
Model Number: Diameter 2mm-20mm
Syarat-syarat pembayaran & pengiriman:
Minimum Order Quantity: 10 rolls
Packaging Details: Inner packing is plastic film .outer packing is carton
Delivery Time: Within 5 working days After receipt of your deposit
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 100.000 meters per Month
Detil Deskripsi produk
kekerasan: 85A warna: hijau
tingkat peregangan: 1,5-3% tingkat tarik: 0,7 lbs-69lbs
bahan: PU panjang: 400m/gulungan 300m/gulungan 200m/gulungan 100m/gulungan 30m/gulungan
Aplikasi.Temp: -35/+75
Cahaya Tinggi:

pu sabuk diekstrusi

,

sabuk bundar hijau

,

sabuk bundar pu 85A

80A - 98A Polyurethane Round Belt For Printing And Packing Machine

Product Description

TPU Belts
Specifications
Smooth Round Belt, Rough Round Belt, V Belt, Ridge Belt, Hexangular Belt, Top Ridge Belt, Supergrip belt, T Belt, Flat Belt, Parallel Belt
Details:
(1)Thermoplastic polyurethane material, easy to be melted jointed
(2)Reinforced by Polyester Cord or Steel Cord
(3)Temperature range -35 - 80
(4)Shore A hardness range 80A - 98A
(5)With excellent resistance to flex, abrasion resistance, easy jointed and other characteristics. Widely used in textile, packaging, printing, machinery, electronic, glass, chemicals, ceramics and other industries, especially in the ceramic industry, widely used in the facilities line the glaze, polishing lines, and transmission line.
(6)Round Belt:
Round Belt Dia. Is from 2mm to 30mm
Smooth Belt with good surface finish; Rough belt with even surface roughness. They are used widely.
(7)V-belt
Specifications include the A, B, C, D, M, Z type
Widely used in ceramic industry, excellent wear resistance
(8)Pentagon Belt, Septangular Belt, Suppergrip belt
Specifications include A, B, C three type
(9)Hexagonal Belt
Specifications include C
(10)Parallel Belt
Including A, B two specifications

ApplicationsMainly used in transmission and distribution products for the textile, clothing, food, packaging, printing, machinery, electronic, glass, chemicals, automobiles, beverages, furniture, toys, paper and other industries; Especially in the ceramic industry, widely used in the glazing Lines, transmission lines, polishing line etc.
Normal specifications including Z, M, A, B, C, D and the Pentangular Belt including A, B, C type, pentagonal belt normally used in the production line's corner.



Items No. φ least radius of gyration stretch rate Maximum tensile rate Hardness length of rolled

Dia.

(mm)

In mm Stretching rate Kg Lbs

Hardness

(A)

Roll

(m)

2mm 0.79 20 1.5-3% 0.3 0.7 90 A 400
3mm 0.98 25 1.5-3% 0.7 1.6 90 A 400
4mm 1.38 35 1.5-3% 1.2 2.7 85 A  200
15mm 4.72 120 1.5-3% 17.7 39.0 85 A  30
18mm 5.71 145 1.5-3% 25.4 56.0 85 A  30
20mm 6.30 160 1.5-3% 31.3 69.0 85 A  30



Products introduction:

Urethane round belts are elastomeric belts for power transmission application.

Having most metric sizes (2mm to 20mm) and standard O-ring sizes.

Polyether and Polyurethane round belts have best resilience of any elastic material.

Polyester product has good wear resistance, its wear resistance is 3.5 times of common

plastic and rubber.





Service commitment:

“Quality for keeping going ,Credit to win the world”
