Abrasion Resistant Polyurethane Belts Textile And Glass 400 M / Roll

Cina Wuxi Jiunai Polyurethane Products Co., Ltd Sertifikasi
Cina Wuxi Jiunai Polyurethane Products Co., Ltd Sertifikasi
Customer satisfaction products , good service !

—— Mr. Alcioni possamai

we are very impressed with the quality of the belts you produced.

—— Mr.Mike

your products are very popular in my markets.

—— Mr. jone

I 'm Online Chat Now

Abrasion Resistant Polyurethane Belts Textile And Glass 400 M / Roll

Abrasion Resistant Polyurethane Belts Textile And Glass 400 M / Roll
Abrasion Resistant Polyurethane Belts Textile And Glass 400 M / Roll Abrasion Resistant Polyurethane Belts Textile And Glass 400 M / Roll Abrasion Resistant Polyurethane Belts Textile And Glass 400 M / Roll Abrasion Resistant Polyurethane Belts Textile And Glass 400 M / Roll

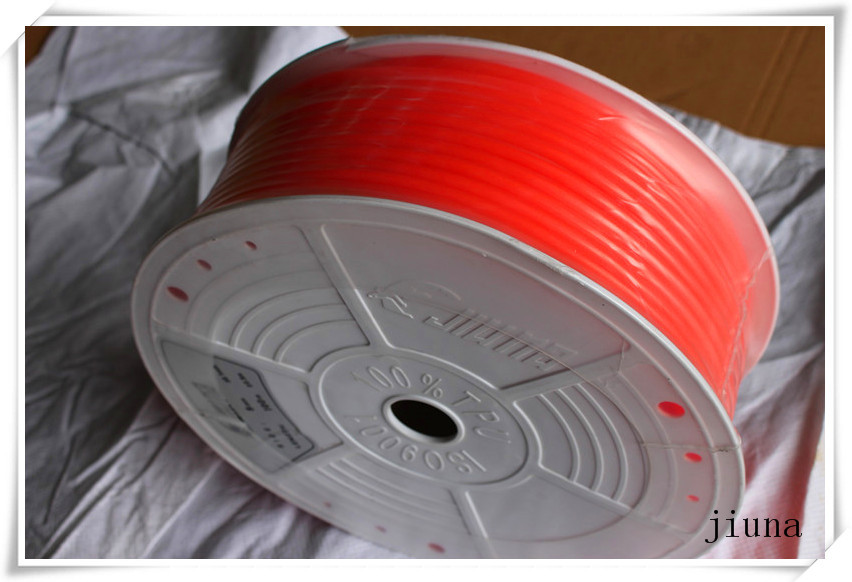

Gambar besar :  Abrasion Resistant Polyurethane Belts Textile And Glass 400 M / Roll

Detail produk:
Place of Origin: china
Nama merek: jiuna
Sertifikasi: ROHS
Model Number: diameter 3mm
Syarat-syarat pembayaran & pengiriman:
Minimum Order Quantity: 10 rolls
Packaging Details: Inner packing is plastic film .outer packing is carton
Delivery Time: Within 5 working days After receipt of your deposit
Payment Terms: L/C, T/T, L/C, Western Union, MoneyGram
Supply Ability: 100,000,00 as per month
Detil Deskripsi produk
warna: jeruk kekerasan: 90A
panjang: 400 m/gulungan Penggunaan: Rantai Transmisi
Tipe: Sabuk bundar kasar PU permukaan: halus
Cahaya Tinggi:

pu sabuk diekstrusi

,

sabuk bundar hijau

,

Sabuk Poliuretan Tahan Abrasi



Abrasion Resistant Polyurethane Belts Textile And Glass 400 M / Roll





Smooth Surface Urethane Round Belting Rohs Approved , Low Compression



Widely used in textiy

  printing and packing machine,food & beverage processing, wood processing  ,  paper processing electronic post service tobacco transmission line
 Wall floor tile conveying industrial line

Ceramic industry line or polishing line



We supply different kinds of PU V-belt, Round belt, Surper grip belt & Pentagon

Color: Orange, Red, Dark Green, Ivory, Natural  .

  • Shore Hardness:  Round belt - 87°A ± 2 .
  • Rough surface: Normal Rough / More Rough  .
  • Steel, Glass & Aramid Reinforcement on request.
  • Easily jointed with BCTech's Welding Kits
  • Features:
  • High tensile and tear strength
  • High abrasion resistance
  • Resistant to oil, grease, dust, moisture & most chemicals
  • Temperature Range: -35 ~ 85 Degrees

The types of TPU V-Belt:

Glossy surface round belt, rough surface round belt, v-belt, pentaone belt, hexagonal belt,

heptagonal belt, supper-grip belt, T belt, perallel belt.



Applications:
Mainly used in transmission and distribution products for the textile, clothing, food, packaging, printing, machinery, electronic, glass, chemicals, automobiles, beverages, furniture, toys, paper and other industries; Especially in the ceramic industry, widely used in the glazing Lines, transmission lines, polishing line etc.
Normal specifications including Z, M, A, B, C, D and the Pentangular Belt including A, B, C type, pentagonal belt normally used in the production line's corner.



Items No. φ least radius of gyration stretch rate Maximum tensile rate Hardness length of rolled

Dia.

(mm)

In mm Stretching rate Kg Lbs

Hardness

(A)

Roll

(m)

2mm 0.79 20 1.5-3% 0.3 0.7 90A 400
3mm 0.98 25 1.5-3% 0.7 1.6 90A 400
4mm 1.38 35 1.5-3% 1.2 2.7 85A 200
15mm 4.72 120 1.5-3% 17.7 39.0 85A 30
18mm 5.71 145 1.5-3% 25.4 56.0 85A 30
20mm 6.30 160 1.5-3% 31.3 69.0 85A 30



Abrasion Resistant Polyurethane Belts Textile And Glass 400 M / Roll 0

Abrasion Resistant Polyurethane Belts Textile And Glass 400 M / Roll 1Abrasion Resistant Polyurethane Belts Textile And Glass 400 M / Roll 0Abrasion Resistant Polyurethane Belts Textile And Glass 400 M / Roll 3



Service commitment:



“ Quality for keeping going ,Credit to win the world”
