Green High Tensile And Tear Strength Resistance To Oils Fuels Polyurethane Round Belt For Industrial

Cina Wuxi Jiunai Polyurethane Products Co., Ltd Sertifikasi
Cina Wuxi Jiunai Polyurethane Products Co., Ltd Sertifikasi
Customer satisfaction products , good service !

—— Mr. Alcioni possamai

we are very impressed with the quality of the belts you produced.

—— Mr.Mike

your products are very popular in my markets.

—— Mr. jone

I 'm Online Chat Now

Green High Tensile And Tear Strength Resistance To Oils Fuels Polyurethane Round Belt For Industrial

Green High Tensile And Tear Strength Resistance To Oils Fuels  Polyurethane Round Belt  For Industrial

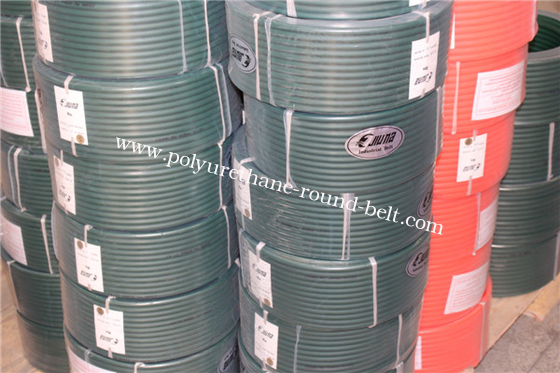

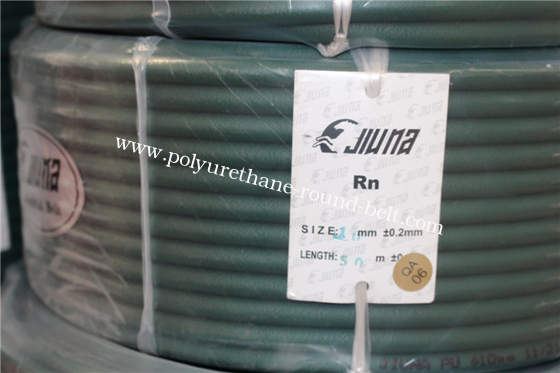

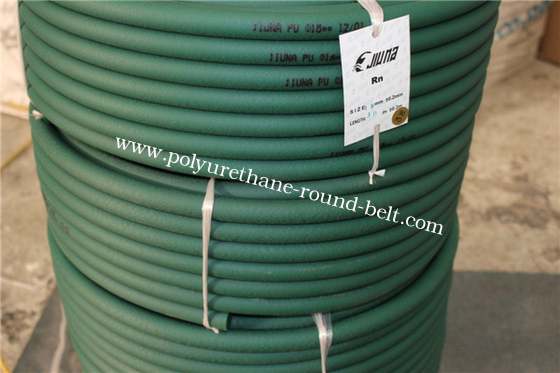

Gambar besar :  Green High Tensile And Tear Strength Resistance To Oils Fuels Polyurethane Round Belt For Industrial

Detail produk:

Place of Origin: China
Nama merek: jiuna
Sertifikasi: ROHS
Model Number: Diameter 5mm~15mm

Syarat-syarat pembayaran & pengiriman:

Minimum Order Quantity: 10rolls
Packaging Details: Inner packing is plastic film .outer packing is carton .
Delivery Time: Within 5 working days After receipt of your deposit
Payment Terms: T/T, 50% payment in advance ,50% balance before shipment ; Western Union ; L/C
Supply Ability: 96.000 meters per Month
Detil Deskripsi produk
color: green or as your require material: PU
longth: 300m/roll 200m/roll 100m/roll hardness: 85A-90A
tensile rate: 0.3kg-31.3kg stretching rate: 1.5%-3%
Cahaya Tinggi:

pu round belt

,

pu extruded belt



PU Cord Belt Application :

(1)   Newspaper conveying,
(2)    Packing machines,
(3)    Ceramic and stoneware processing plants,
(4)   Floor and roof tiles conveying,
(5)   Wood Working machineries,
 (6)   Textile machines,
 (7)    Paper industry machines,
 (8)   Food grading machines, other food processing machines.





Items No. φ least radius of gyration stretch rate Maximum tensile rate Hardness length of rolled

DIA

(mm)

In mm Stretching rate Kg Lbs

Hardness

(A)

Roll

(m)

2 0.79 20  1.5-3% 0.3 0.7 90 400
3 0.98 25   1.5-3% 0.7 1.6 90 400
4 1.38 35   1.5-3% 1.2 2.7 85 200
5 1.57 40   1.5-3% 2.0 4.3 85 100
6 1.97 50   1.5-3% 3.2 7.0 85 100
7 2.17 55   1.5-3% 4.1 9.0 85 100
8 2.56 65   1.5-3% 5.0 11.0 85 100
9 2.95 75   1.5-3% 6.8 15.0 85 50
10 2.95 75   1.5-3% 7.7 17.0 85 50
              30
15 4.72 120 mm 1.5-3% 17.7 39.0 85 30
18 5.71 145 mm 1.5-3% 25.4 56.0 85 30
20 6.30 160 mm 1.5-3% 31.3 69.0 85

30





Green High Tensile And Tear Strength Resistance To Oils Fuels  Polyurethane Round Belt  For Industrial 0Green High Tensile And Tear Strength Resistance To Oils Fuels  Polyurethane Round Belt  For Industrial 1Green High Tensile And Tear Strength Resistance To Oils Fuels  Polyurethane Round Belt  For Industrial 2
