Reinforced Cord Kevlar Belts

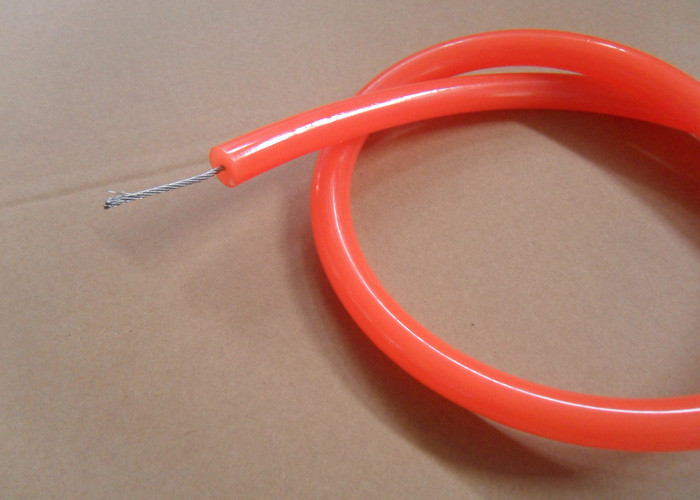

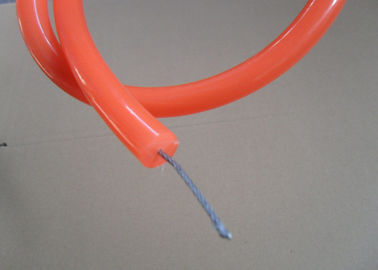

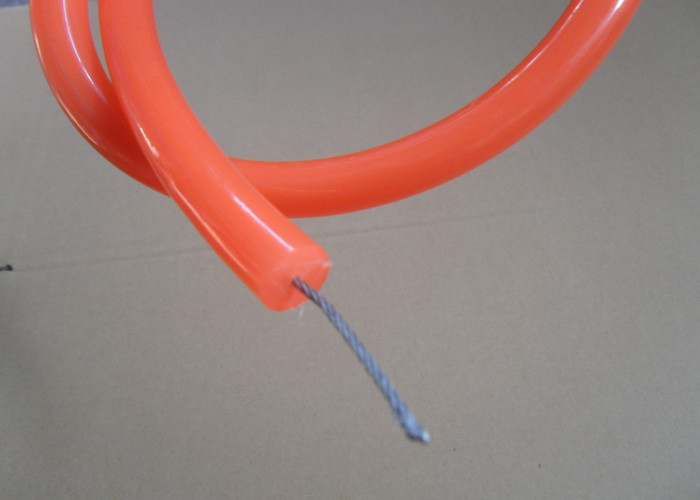

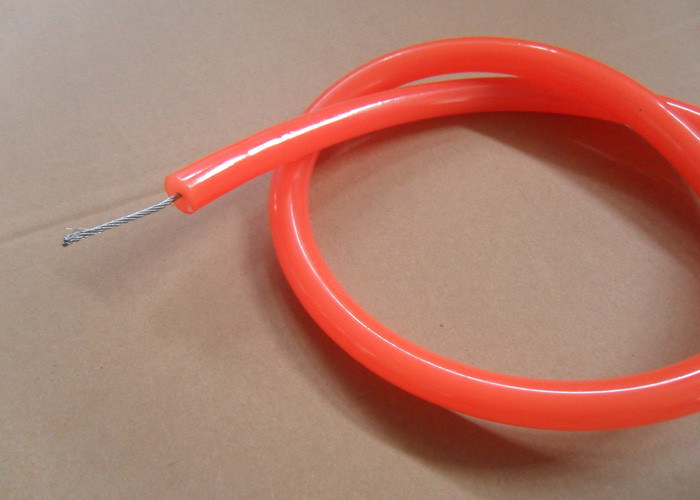

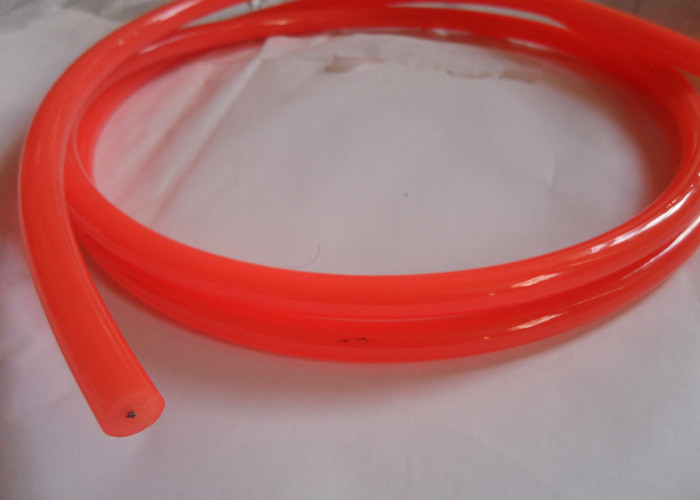

Gambar besar : Reinforced Cord Kevlar Belts

Detail produk:

Place of Origin:	China
Nama merek:	Jiuna
Sertifikasi:	ROHS
Model Number:	Diameter 12mm ,12.5mm
Hardness:	90 shore A
Cord material:	steel
Length:	30 meter /rolls

Syarat-syarat pembayaran & pengiriman:

Minimum Order Quantity:	600 Meter
Packaging Details:	Inner packing is plastic film .outer packing is carton .
Delivery Time:	Within 5 working days After receipt of your deposit
Payment Terms:	T/T, Western Union ,paypal ,L/C
Supply Ability:	96.000 meters per Month
Export port:	shanghai
Factory:	Wuxi City

Kontak

Detil Deskripsi produk

Cahaya Tinggi:

Reinforced cord belt

polyurethane flat belt

OEM Custom-made Diameter 12mm,12.5mm steel cord belts Reinforced Cord

Characteristics of reinforced cord

1. Tensile strength achieves up to 300 KG ~600KG

2. Reinforced cord : nylon , kevlar ,steel

3. Hardness 85 shore A ~ 95 shore A,

4.High resilience ,low level of belt stretching .

5.Excellent wear and abrasion resistance

6.Resistance to oil. Grease, dirt and most chemicals

7.can be welding through overlap welding

8.color on your request

Items No. φ	Least radius of gyration		Stretching rate	Maximum tensile rate		Hardness	Length of rolled
DIA (mm)	In	mm	%	Kg	Lbs	Shore (A)	Roll (m)
12mm	3.94	100	1.5-3%	12.2	27.0	90	30
12.5mm	4.19	120	1.5-3%	17.7	39.0	90	30

Application industries for steel cord belts (rope guided )

1.winder power industrial

2.General Constructions Engineer .

3.Tower climbing

4.Cable car cabin

5.Help anchor device (Climb assist rope)

6.Traction rope (Rope guided )

Products introduction :

Hardness of Reinforced steel cord Polyurethane Belt is 85A, 90A or 95A polyurethane reinforced with polyester cords or tape for additional strength and reduced stretch, making it the ideal choice for heavy-duty conveying applications where loads cause non-reinforced belts to elongate and slip. Maybe require larger pulley diameter and the addition of take-ups to the drive system. Excellent resistance can be to a wide range of industrial chemicals and solvents.
