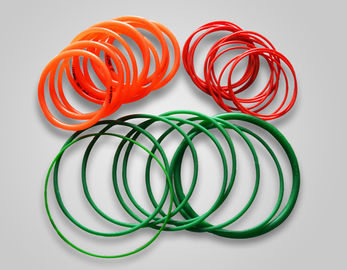

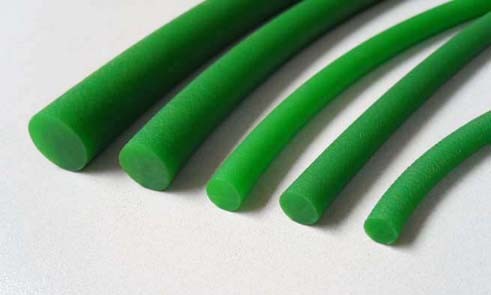

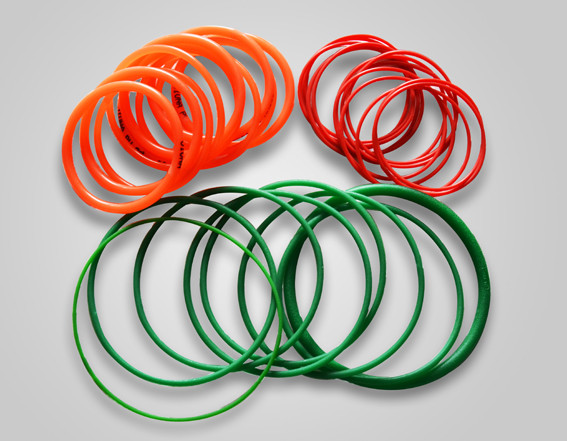

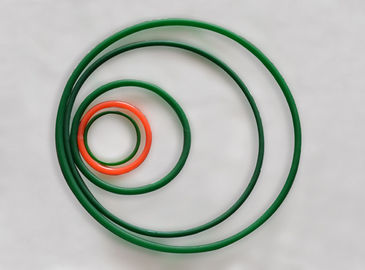

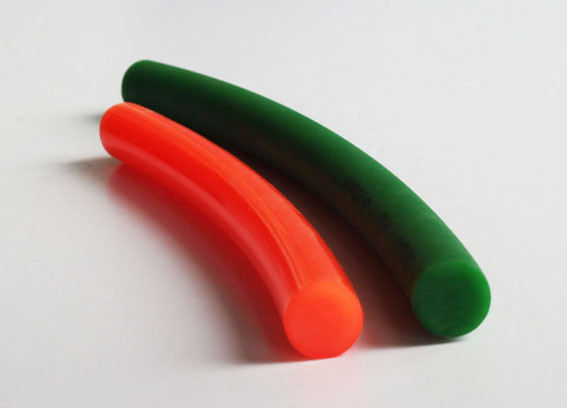

Heat Resistant Polyurethane Rubber Round Belt Extruded Thermo

Gambar besar : Heat Resistant Polyurethane Rubber Round Belt Extruded Thermo

Detail produk:

Place of Origin:	china
Nama merek:	jiuna
Sertifikasi:	ROHS
Model Number:	dia 2-20mm

Syarat-syarat pembayaran & pengiriman:

Minimum Order Quantity:	10rolls
Packaging Details:	Inner packing is plastic film .outer packing is carton
Delivery Time:	Within 5 working days After receipt of your deposit
Payment Terms:	T/T, 50% payment in advance ,50% balance before shipment
Supply Ability:	6000 piece per Month

Kontak

Detil Deskripsi produk

color:	green or orange	hardness:	85A-90A
export port:	shanghai	length:	as your request
Tensile Strength:	55N/mm2	material:	PU
Cahaya Tinggi:	PU sabuk diekstrusi , sabuk putaran hijau

Heat Resistant Polyurethane Rubber Round Belt Extruded Thermo

Features:

Outstanding abrasion resistance
High tensile and tear strength
Resistance to oils, fuels,and oxygen
Good weatherability and high impact resistance
Low compression set

Application:

Newspaper conveying,
Packing machines,
Ceramic and stoneware processing plants,
Floor and roof tiles conveying,
Wood Working machineries,
Textile machines,
Paper industry machines,
Food grading machines, other food processing machines.

Products introduction:

We offer a complete line of Polyester and Polyurethane Round belts for use in industrial machines. And In the conveyance of products ranging from transport machine, convey or machine to glass and tile. Round belts are available with smooth and rough surfaces and reinforced with polyester, nylon or fibers. Also can welding belt to O-ring . supply the connecting tools & Accessories for polyurethane belts , include clamp ,the Electric Iron and Knife , Connecting methods is hot press welding , overlap welding .

The very elastic and flexible material PU 85 A ~90 A is particularly suitable for lead in conveyors and vertical shaft.

Items NO.Φ	Least radius of gyration		Stretching rate	Maximum tensile rate		Hardness	Length of rolled
DIA(mm)	In	mm	%	Kg	Lbs	Shore( A)	Length of rolled
2mm	0.79	20	1.5-3%	0.3	0.7	95	400
2.5mm	0.87	22	1.5-3%	0.4	0.9	95	400
3mm	0.98	25	1.5-3%	0.7	1.6	90	400
3.5mm	1.18	30	1.5-3%	0.95	2.1	90	400
4mm	1.38	35	1.5-3%	1.2	2.7	90	200
5mm	1.57	40	1.5-3%	2.0	4.3	90	100
6mm	1.97	50	1.5-3%	3.2	7.0	90	100
7mm	2.17	55	1.5-3%	4.1	9.0	90	100
8mm	2.56	65	1.5-3%	5.0	11.0	90	100
9mm	2.95	75	1.5-3%	6.8	15.0	90	50
10mm	2.95	75	1.5-3%	7.7	17.0	90	50
12mm	3.94	100	1.5-3%	12.2	27.0	90	30
15mm	4.72	120	1.5-3%	17.7	39.0	90	30
18mm	5.71	145	1.5-3%	25.4	56.0	90	30
20mm	6.30	160	1.5-3%	31.3	69.0	90	30

Heat Resistant Polyurethane Rubber Round Belt Extruded Thermo 0
