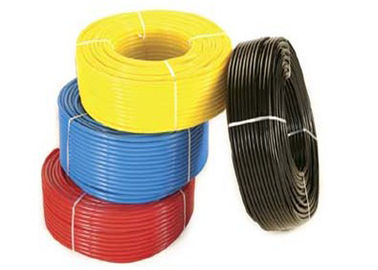

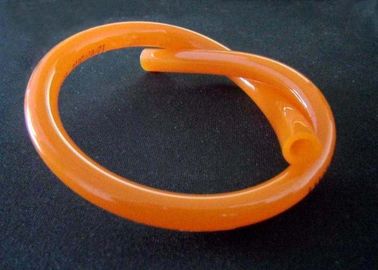

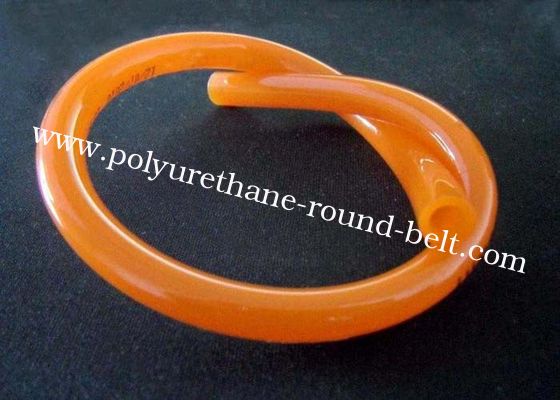

Elastic Polyurethane Air Pneumatic Tubing with 95 shore A to 98 shore A Hardness Polyurethane Tubing

Cina Wuxi Jiunai Polyurethane Products Co., Ltd Sertifikasi
Cina Wuxi Jiunai Polyurethane Products Co., Ltd Sertifikasi
Customer satisfaction products , good service !

—— Mr. Alcioni possamai

we are very impressed with the quality of the belts you produced.

—— Mr.Mike

your products are very popular in my markets.

—— Mr. jone

I 'm Online Chat Now

Elastic Polyurethane Air Pneumatic Tubing with 95 shore A to 98 shore A Hardness Polyurethane Tubing

Elastic Polyurethane Air Pneumatic Tubing with 95 shore A to 98 shore A Hardness Polyurethane Tubing
Elastic Polyurethane Air Pneumatic Tubing with 95 shore A to 98 shore A Hardness Polyurethane Tubing Elastic Polyurethane Air Pneumatic Tubing with 95 shore A to 98 shore A Hardness Polyurethane Tubing

Gambar besar :  Elastic Polyurethane Air Pneumatic Tubing with 95 shore A to 98 shore A Hardness Polyurethane Tubing

Detail produk:
Place of Origin: China
Nama merek: Jiuna
Sertifikasi: ROHS
Model Number: According to your requirement
Length: 100 meter /rolls
Hardness: 98 shore A
Syarat-syarat pembayaran & pengiriman:
Minimum Order Quantity: 1000 meters
Packaging Details: Normal packing. Inner packing is plastic film .outer packing is carton . Or according to customers'
Delivery Time: Within 15 working days After receipt of your deposit
Payment Terms: T/T, 50% payment in advance ,50% balance before shipment ; Western Union ; L/C
Supply Ability: 96000 meters per Month
Detil Deskripsi produk
Cahaya Tinggi:

polyurethane pneumatic tube

,

pu air tubing

Elastic Polyurethane Air Pneumatic Tubing with 95 shore A to 98 shore A Hardness



PU tubing Properties:

1. Strong elastic, flexibility.

2. Hardness range from 95 shore A to 98 shore A ,

3. Can absorb shock and reduce the pipe friction.

4. Wide range of working temperature and pressure.



PU tubing Usage:

1 .Industrial Pneumatic tools, Processing control with potential

2. Gas pipeline, Auto assembly line, Instrument & equipment, Laboratory,

3. Lube Transmission line, Robotics, Non-corrosive chemical transmission system, Water transmission & gardening   .

4. Water and other fluid and non-corrosive oil.

5. Accessories(such as handle)

6. Metal and electronic products protective coat.





PART NO.

O.D./ I.D. (mm)

BURST PRESSURE (kg./cm2)

WORKING PRESSURE (kg./cm2)

BENDING RADIUS (mm)

STANDARD LENGTH (m)

PUT-01

4 x 2

30

10

10

100

PUT-02

6 x 4

30

10

16

100

PUT-03

8 x 5

30

10

22

100

PUT-04

8 x 5.5

30

10

21

100

PUT-05

8 x 6

30

10

20

100

PUT-06

10 x 6.5

30

10

23

100

PUT-07

10X7

             30

10

25

100

PUT-08

12 x 8

             30

10

35

100

PUT-09

12 x 9

             30

10

40

100

PUT-10

12 x 10

             30

10

45

100



Products Introduction:

polyurethane tubing is resistant to chemicals, water, fuel, oil and fungus. This product is extremely flexible and highly resistant to abrasion and kinking. In addition, polyurethane has excellent "memory" and can be stretched and flexed, but will return to its original shape, air line tubing is made from 98A shore durometer, ether-based polyurethane and is an excellent choice for compressed air systems. It is ideal for Push-to-Connect airline fittings and easily attaches to pneumatic valves, air filters or regulators, pressure relief valve, and airline lubricators. This extruded tubing is a good choice for air tools and accessories.



Service commitment:

We have been adhering to the business philosophy of “Quality for keeping going ,Credit to win the world” committing itself to providing extensive customers with quality services ,we still can Provide Technical Product support for customers.
