Corrugated Belt PU Vee Super Grip Belt with Top Green PVC Surface
| Place of Origin | China |
|---|---|
| Nama merek | Jiuna |
| Sertifikasi | ROHS |
| Model Number | A-13 / B-17 / C-22 |
| Minimum Order Quantity | 10rolls |
| Packaging Details | Inner packing is plastic film .outer packing is carton |
| Delivery Time | Within 5 working days After receipt of your deposit |
| Payment Terms | T/T, 50% payment in advance ,50% balance before shipment |
| Supply Ability | 96.000 meters per Month |
Hubungi saya untuk sampel gratis dan kupon.
ada apa:0086 18588475571
Wechat wechat: 0086 18588475571
Skype: sales10@aixton.com
Jika Anda memiliki masalah, kami menyediakan bantuan online 24 jam.
xDetail produk
| Hardness | 85A-90A | Tensile | 55Mpa |
|---|---|---|---|
| Material | PU | type | Corrugated Belt |
| color | red belt top green surface | length | 30m/roll |
| Menyoroti | pu round belt,PU sabuk diekstrusi |
||
Deskripsi Produk

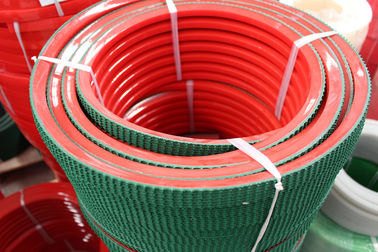

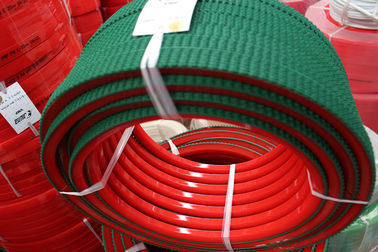

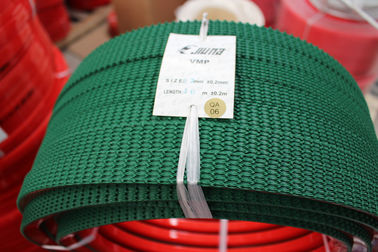

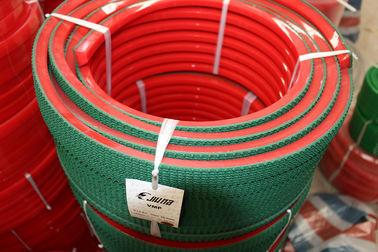

Anti - skipping Corrugated Belt PU Vee Super Grip Belt with Top Green PVC Surface
Super grip Belt Feature :
- Profile shape: Vee
- Profile size: A/13, B/17, C/22
- Reinforcement: None
- Color: Green, Red
- Compliancy: RoHS
- Durometer: 80A, 90A
- Material: Polyurethane, PVC Top Surface
- Special Feature: PVC Grip Top Surface
- Package Length: 30meter /roll
- Easily welded endless vee belt .
Vee-Belt Application :
1. Widely used in conveying slippery environments,
2. up steep inclines conveying industrial .
|
Specification |
X(mm) |
H(mm) |
Z(mm) |
M/rolls |
reinforced |
arabesquitic |
|
A |
13 |
8 |
3.5 |
30 |
· |
· |
|
B |
17 |
11 |
3.5 |
30 |
· |
· |
|
C |
22 |
14 |
3.5 |
30 |
· |
· |
|
D |
32 |
19 |
3.5 |
30 |
· |
· |
|
M |
8 |
4 |
|
50 |
|
|
|
Z |
10 |
5 |
3.5 |
50 |
· |
· |
Products introduction:
Super grip belt are ideally suited for applications where conveying in slippery environments, up steep inclines, or moving easily damaged products is more important than abrasion resistance.
PU Vee Super Grip with top PVC surface is soft and tacky enough that it won’t damage your precious cargo while giving you the grip that you need. The ultra-high grip material is produced with an extremely compliant pattern .
Conveying applications that require the elasticity of an unreinforced V-belt combined with a super grip surface.
Service commitment:
“Quality for keeping going ,Credit to win the world”
