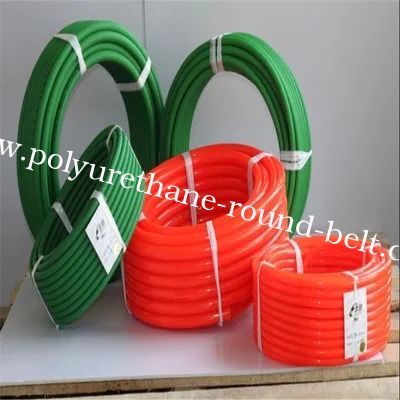

Oil-Resistant Polyurethane Round Belt with Shore A 90 Hardness and Diameter 2-20mm for Drive Transmission
Detail produk
| Model No. | JN20169 | Jenis | Sabuk bundar PU |
|---|---|---|---|
| Bahan | pu | Bahan bagian dalam | pu |
| Permukaan | Lurus atau kasar | Kekuatan tarik | 55N/mm2 |
| Rentang diameter | 2 ~ 20 mm | Kekerasan | 85 A ~ 90 a |
| tingkat peregangan | 1,5-3% | Tingkat tarik maksimum | Kg (bervariasi dengan diameter) |
| Radius terkecil | 20 ~ 160 mm | Panjang gulung | 30 ~ 400 m |
| Kekuatan air mata | Tinggi | Set kompresi | Rendah |
| Dampak resistensi | Tinggi | ||
| Menyoroti | Oil-Resistant Polyurethane Round Belt,Shore A 90 Polyurethane V Belt,Diameter 2-20mm PU Round Belt |
||
Deskripsi Produk
Abrasion-Resistant Polyurethane Round Belt
Our premium polyurethane round belts are designed for transmission applications in industrial machinery and product conveyance systems. These belts feature poly cord reinforcement and are available with either smooth or rough surfaces to suit various operational requirements.
Product Features
- Exceptional abrasion resistance for extended service life
- High tensile and tear strength for demanding applications
- Resistant to oils, fuels, and oxygen exposure
- Excellent weatherability and impact resistance
- Minimal compression set for consistent performance
- Available in multiple diameters from 2mm to 20mm
- Compatible with various connection methods including hot press welding
Technical Specifications
| Diameter | Min. Bend Radius | Elongation | Max. Tensile | Hardness | Roll Length |
|---|---|---|---|---|---|
| 2mm (0.79") | 20mm | 1.5-3% | 0.3kg (0.7lbs) | 95A | 400m |
| 2.5mm (0.87") | 22mm | 1.5-3% | 0.4kg (0.9lbs) | 95A | 400m |
| 3mm (0.98") | 25mm | 1.5-3% | 0.7kg (1.6lbs) | 90A | 400m |
| 3.5mm (1.18") | 30mm | 1.5-3% | 0.95kg (2.1lbs) | 90A | 400m |
| 4mm (1.38") | 35mm | 1.5-3% | 1.2kg (2.7lbs) | 90A | 200m |
| 5mm (1.57") | 40mm | 1.5-3% | 2kg (4.3lbs) | 90A | 100m |
| 6mm (1.97") | 50mm | 1.5-3% | 3.2kg (7lbs) | 90A | 100m |
| 7mm (2.17") | 55mm | 1.5-3% | 4.1kg (9lbs) | 90A | 100m |
| 8mm (2.56") | 65mm | 1.5-3% | 5kg (11lbs) | 90A | 100m |
| 9mm (2.95") | 75mm | 1.5-3% | 6.8kg (15lbs) | 90A | 50m |
| 10mm (3.94") | 100mm | 1.5-3% | 7.7kg (17lbs) | 90A | 50m |
| 12mm (3.94") | 100mm | 1.5-3% | 12.2kg (27lbs) | 90A | 30m |
| 15mm (4.72") | 120mm | 1.5-3% | 17.7kg (39lbs) | 90A | 30m |
| 18mm (5.71") | 145mm | 1.5-3% | 25.4kg (56lbs) | 90A | 30m |
| 20mm (6.3") | 160mm | 1.5-3% | 31.3kg (69lbs) | 90A | 30m |
Common Applications
Newspaper conveying
Packaging machinery
Ceramic processing
Tile production
Woodworking equipment
Textile machinery
Paper industry
Food processing
Grading machines
