Detail produk:
Syarat-syarat pembayaran & pengiriman:
|
Fungsi utama: | Drive transmisi | Kekerasan: | 90 pantai A |
---|---|---|---|
Bahan: | PU | Panjang: | 30 meter/gulungan |
Jenis: | V-belt | warna: | warna apapun |
Cahaya Tinggi: | sabuk bundar hijau,sabuk bundar pu,sabuk kekerasan 90a pu v |

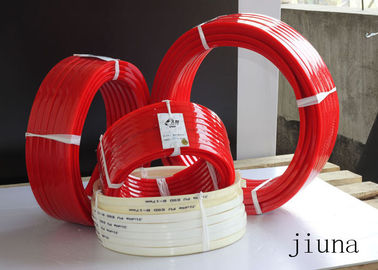

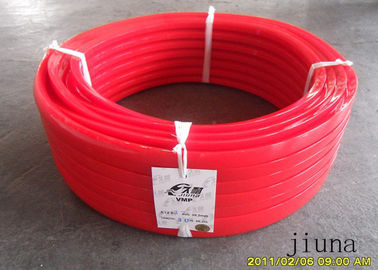

Red White Green Hardness 90a Pu V Belt 30m Per Roll For Ceramic Production Lines
(1) Thermoplastic polyurethane material, easy to be melted jointed,100% pure polyurethane
(2) Reinforced by Polyester Cord or Steel Cord
(3) Temperature range -35 degree - 80 degree
(4) Shore A hardness range 80A - 98A
(5) With excellent resistance to flex, abrasion resistance, easy jointed and other characteristics. Widely used in textile, packaging, printing, machinery, electronic, glass, chemicals, ceramics and other industries, especially in the ceramic industry, widely used in the facilities line the glaze, polishing lines, and transmission line.
(6) Specification including A, B, C , D, M , Z, widely used in ceramic industries with excellent abrasion resistance.
Product Technical Parameters :
Specification |
X(mm) |
H(mm) |
Z(mm) |
M/rolls |
reinforced |
arabesquitic |
A |
13 |
8 |
3.5 |
30 |
· |
· |
B |
17 |
11 |
3.5 |
30 |
· |
· |
C |
22 |
14 |
3.5 |
30 |
· |
· |
D |
32 |
19 |
3.5 |
30 |
· |
· |
M |
8 |
4 |
|
50 |
|
|
Z |
10 |
5 |
3.5 |
50 |
· |
· |

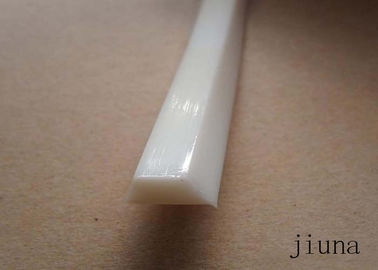

Characteristics for PU V-section belt
excellent elasticity and damping characteristics
High tensile strength
With smooth surface v-belts
Color :red ,white
Hardness 90 shore A
Available with or without reinforced cord .
Replacement for conventional rubber V-belts , but more wear-resisting and can welding.
Products introduction
In addition , We are able to tailor Round and V-belts of different lengths and diameters - within a few days and with high quality.
