Glass Tempering Furnace Polyurethane Round Belt PU Seamless O-ring Cord 8 × 1010mm

Cina Wuxi Jiunai Polyurethane Products Co., Ltd Sertifikasi
Cina Wuxi Jiunai Polyurethane Products Co., Ltd Sertifikasi
Customer satisfaction products , good service !

—— Mr. Alcioni possamai

we are very impressed with the quality of the belts you produced.

—— Mr.Mike

your products are very popular in my markets.

—— Mr. jone

I 'm Online Chat Now

Glass Tempering Furnace Polyurethane Round Belt PU Seamless O-ring Cord 8 × 1010mm

Glass Tempering Furnace Polyurethane Round Belt PU Seamless O-ring Cord 8 × 1010mm
Glass Tempering Furnace Polyurethane Round Belt PU Seamless O-ring Cord 8 × 1010mm Glass Tempering Furnace Polyurethane Round Belt PU Seamless O-ring Cord 8 × 1010mm Glass Tempering Furnace Polyurethane Round Belt PU Seamless O-ring Cord 8 × 1010mm Glass Tempering Furnace Polyurethane Round Belt PU Seamless O-ring Cord 8 × 1010mm

Gambar besar :  Glass Tempering Furnace Polyurethane Round Belt PU Seamless O-ring Cord 8 × 1010mm

Detail produk:
Place of Origin: China
Nama merek: Jiuna
Sertifikasi: ROHS
Model Number: Diameter 2mm~20mm
Syarat-syarat pembayaran & pengiriman:
Minimum Order Quantity: 500pcs
Packaging Details: Inner packing is plastic film .outer packing is carton .
Delivery Time: Within 5 working days After receipt of your deposit
Payment Terms: T/T, 50% payment in advance ,50% balance before shipment ; Western Union ; L/C
Supply Ability: 6000 piece per Month
Detil Deskripsi produk
material: PU hardness: 85A-90A
color: green length: 400m/roll 200m/roll 100m/roll 50m/rll 30m/roll
surface: rough Standard or Nonstandard: Standard
Cahaya Tinggi:

PU sabuk diekstrusi

,

sabuk putaran hijau

Glass Tempering Furnace Polyurethane Round Belt PU Seamless O-ring Cord 8 × 1010mm

Seamless O-ring  Properties :

-Good resistance to fuel , oils and oxygen

-Contains no plasticizer

-Wide application temperature from -30℃~+80℃



Features:

Outstanding abrasion resistance
High tensile and tear strength
Resistance to oils, fuels,and oxygen
Good weatherability and high impact resistance
Low compression set

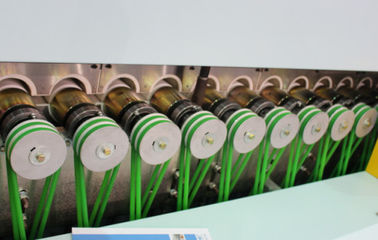

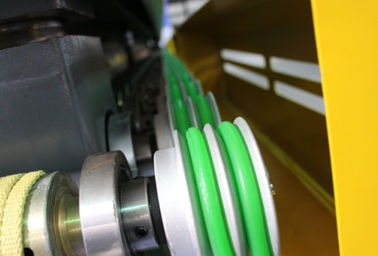

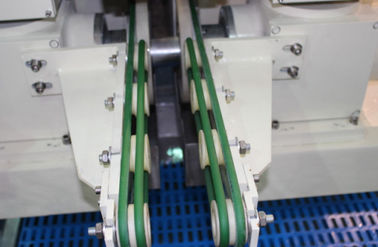

Application:

Newspaper conveying,
Packing machines,
Ceramic and stoneware processing plants,
Floor and roof tiles conveying,
Wood Working machineries,
Textile machines,
Paper industry machines,
Food grading machines, other food processing machines.



Items NO.Φ

Least radius of gyration

Stretching rate

Maximum tensile rate

Hardness

Length of rolled

DIA(mm)

 In

mm

  %

Kg

Lbs

Shore( A)

Length of rolled

2mm

0.79

20

1.5-3%

0.3

0.7

95

400

2.5mm

0.87

22

1.5-3%

0.4

0.9

95

400

3mm

0.98

25

1.5-3%

0.7

1.6

90

400

3.5mm

1.18

30

1.5-3%

0.95

2.1

90

400

4mm

1.38

35

1.5-3%

1.2

2.7

90

200

5mm

1.57

40

1.5-3%

2.0

4.3

90

100

6mm

1.97

50

1.5-3%

3.2

7.0

90

100

7mm

2.17

55

1.5-3%

4.1

9.0

90

100

8mm

2.56

65

1.5-3%

5.0

11.0

90

100

9mm

2.95

75

1.5-3%

6.8

15.0

90

50

10mm

2.95

75

1.5-3%

7.7

17.0

90

50

12mm

3.94

100

1.5-3%

12.2

27.0

90

30

15mm

4.72

120

1.5-3%

17.7

39.0

90

30

18mm

5.71

145

1.5-3%

25.4

56.0

90

30

20mm

6.30

160

1.5-3%

31.3

69.0

90

30





Glass Tempering Furnace Polyurethane Round Belt PU Seamless O-ring Cord 8 × 1010mm 0
