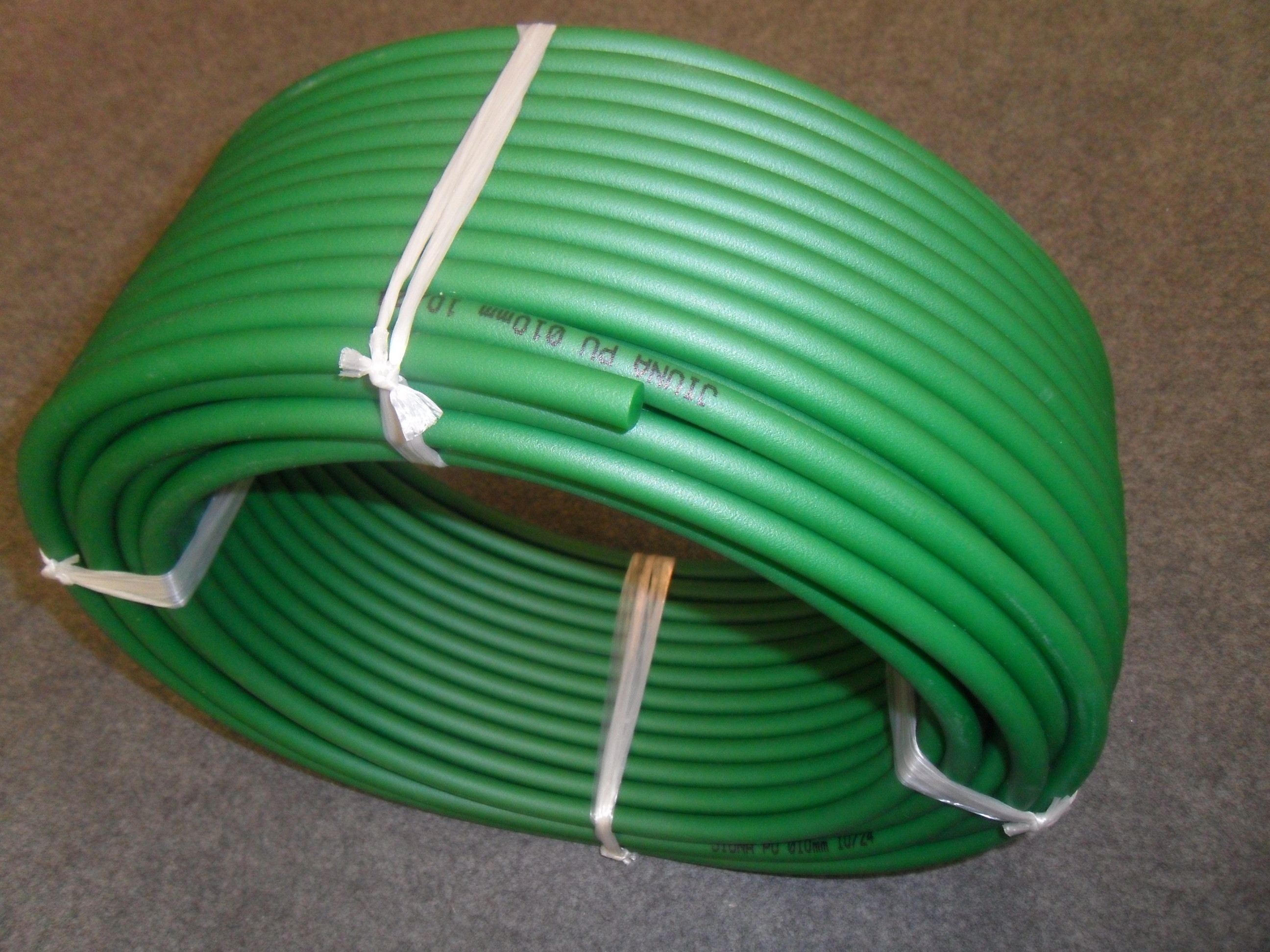

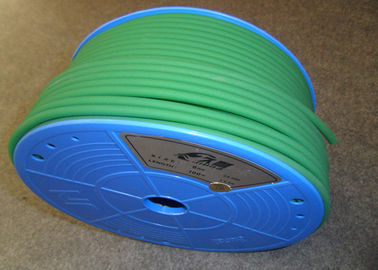

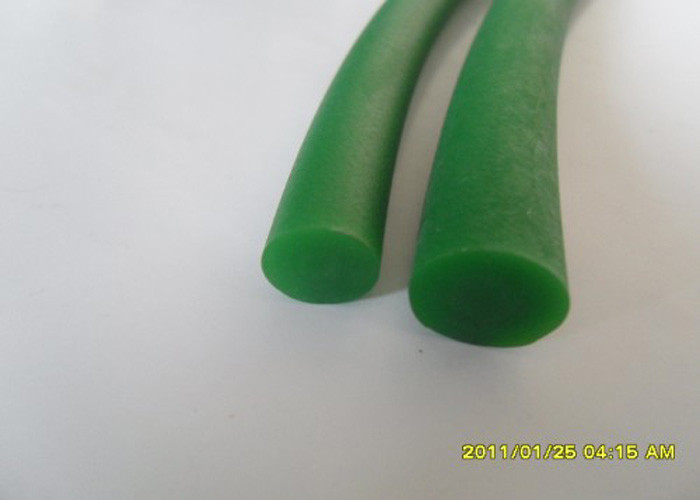

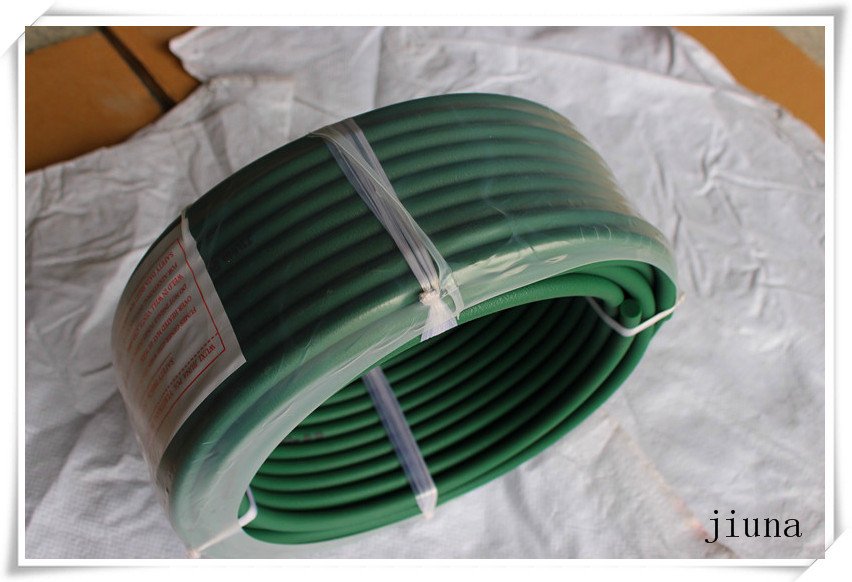

Tensile Strength Polyurethane Round Belt / Green PU Extruded Belt

  • Tensile Strength Polyurethane Round Belt / Green PU Extruded Belt
  • Tensile Strength Polyurethane Round Belt / Green PU Extruded Belt
  • Tensile Strength Polyurethane Round Belt / Green PU Extruded Belt
  • Tensile Strength Polyurethane Round Belt / Green PU Extruded Belt
Place of Origin China
Nama merek jiuna
Sertifikasi ROHS
Model Number Diameter 5mm~15mm
Minimum Order Quantity 10rolls
Packaging Details Inner packing is plastic film .outer packing is carton .
Delivery Time Within 5 working days After receipt of your deposit
Payment Terms T/T, 50% payment in advance ,50% balance before shipment ; Western Union ; L/C
Supply Ability 96.000 meters per Month

Hubungi saya untuk sampel gratis dan kupon.

ada apa:0086 18588475571

Wechat wechat: 0086 18588475571

Skype: sales10@aixton.com

Jika Anda memiliki masalah, kami menyediakan bantuan online 24 jam.

x
Detail produk
color green material PU
longth 300m/roll 200m/roll 100m/roll hardness 85A-90A
tensile rate 0.3kg-31.3kg stretching rate 1.5%-3%
Menyoroti

PU sabuk diekstrusi

,

sabuk putaran hijau
Tinggalkan pesan
Deskripsi Produk

Tensile Strength Polyurethane Round Belt / Green PU Extruded Belt

Detailed Product Description:

PU Cord Belt Application :

Application:

Newspaper conveying,
Packing machines,
Ceramic and stoneware processing plants,
Floor and roof tiles conveying,
Wood Working machineries,
Textile machines,
Paper industry machines,
Food grading machines, other food processing machines.

PU Cord Properties :

-Excellent abrasion resistance.

-Good resistance to fuel , oils and oxygen.

-Contains no plasticizer.

-Wide application temperature from -30℃~+80℃

transmission Round Belting Feature :

Features:

Outstanding abrasion resistance
High tensile and tear strength
Resistance to oils, fuels,and oxygen
Good weatherability and high impact resistance
Low compression set



Items No. φ least radius of gyration stretch rate Maximum tensile rate Hardness length of rolled

DIA

(mm)

 In mm Stretching rate Kg Lbs

Hardness

(A)

Roll

(m)
2mm 0.79 20mm 1.5-3% 0.3 0.7 90 400
3mm 0.98 25mm 1.5-3% 0.7 1.6 90 400
4mm 1.38 35mm 1.5-3% 1.2 2.7 85 200
5mm 1.57 40mm 1.5-3% 2.0 4.3 85 100
6mm 1.97 50mm 1.5-3% 3.2 7.0 85 100
7mm 2.17 55mm 1.5-3% 4.1 9.0 85 100
8mm 2.56 65mm 1.5-3% 5.0 11.0 85 100
9mm 2.95 75mm 1.5-3% 6.8 15.0 85 50
10mm 2.95 75mm 1.5-3% 7.7 17.0 85 50
12mm 3.94 100mm 1.5-3% 12.2 27.0 85 30
15mm 4.72 120mm 1.5-3% 17.7 39.0 85 30
18mm 5.71 140 1.5-3% 25.4 56.0 85 30
20mm 6.30 160mm 1.5-3% 31.3 69.0 85

30
