85A - 90A PU Round conveyor Belt Fuels Oxygen Glass Industry

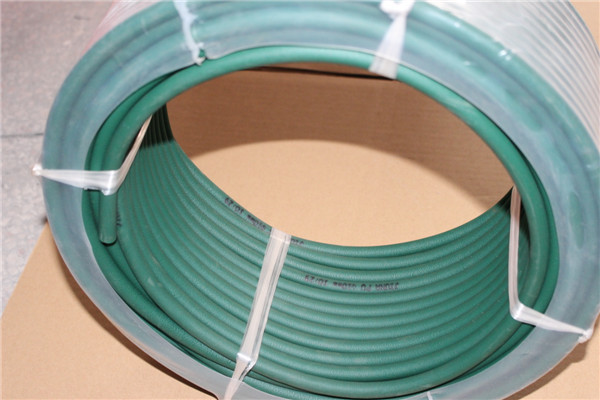

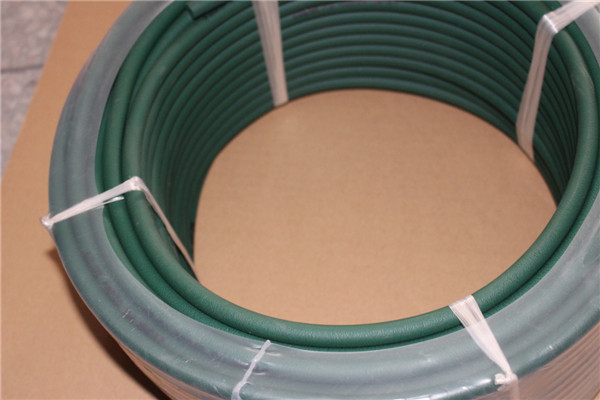

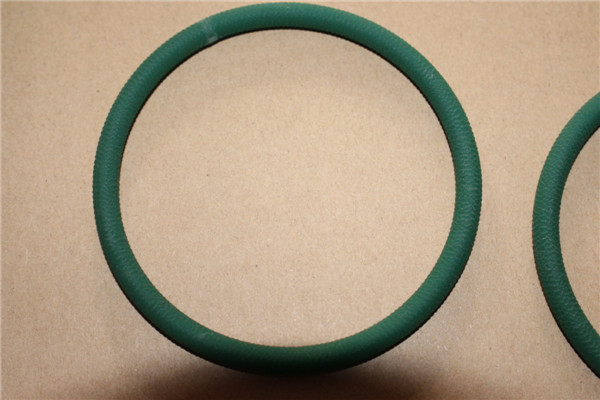

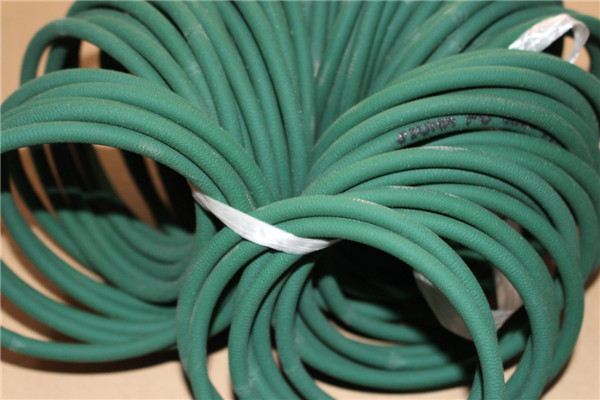

Gambar besar : 85A - 90A PU Round conveyor Belt Fuels Oxygen Glass Industry

Detail produk:

Place of Origin:	China
Nama merek:	jiuna
Sertifikasi:	ROHS
Model Number:	Diameter 5mm~15mm

Syarat-syarat pembayaran & pengiriman:

Minimum Order Quantity:	10rolls
Packaging Details:	Inner packing is plastic film .outer packing is carton .
Delivery Time:	Within 5 working days After receipt of your deposit
Payment Terms:	T/T, 50% payment in advance ,50% balance before shipment ; Western Union ; L/C
Supply Ability:	96.000 meters per Month

Kontak

Detil Deskripsi produk

tensile rate:	0.3kg-31.3kg	color:	green or as your require
stretching rate:	1.5%-3%	material:	PU
longth:	300m/roll 200m/roll 100m/roll	hardness:	85A-90A
Cahaya Tinggi:	pu round belt , PU sabuk diekstrusi

85A - 90A PU Round conveyor Belt Fuels Oxygen Glass Industry

PU Cord Belt Application :

(1)printing and packing machine

(2)food & beverage processing

(3)wood processing

(4)paper processing

(5) electronic

(6)post service

(7)tobacco transmission line

PU Cord Properties :

(1)Excellent abrasion resistance.

(2)Good resistance to fuel , oils and oxygen.

(3)Contains no plasticizer.

(4)Wide application temperature from -30℃~+80℃

transmission Round Belting Feature :

(1) With excellent bend resistant

(2) wear resistant

(3) easy connected

(4) t's not easy to be broken at low temperature

Items No. φ	least radius of gyration		stretch rate	Maximum tensile rate		Hardness	length of rolled
DIA (mm)	In	mm	Stretching rate	Kg	Lbs	Hardness (A)	Roll (m)
2	0.79	20 mm	1.5-3%	0.3	0.7	90	400
3	0.98	25 mm	1.5-3%	0.7	1.6	90	400
4	1.38	35 mm	1.5-3%	1.2	2.7	85	200
5	1.57	40 mm	1.5-3%	2.0	4.3	85	100
6	1.97	50 mm	1.5-3%	3.2	7.0	85	100
7	2.17	55 mm	1.5-3%	4.1	9.0	85	100
8	2.56	65 mm	1.5-3%	5.0	11.0	85	100
9	2.95	75 mm	1.5-3%	6.8	15.0	85	50
10	2.95	75 mm	1.5-3%	7.7	17.0	85	50
12	3.94	100 mm	1.5-3%	12.2	27.0	85	30
15	4.72	120 mm	1.5-3%	17.7	39.0	85	30
18	5.71	145 mm	1.5-3%	25.4	56.0	85	30
20	6.30	160 mm	1.5-3%	31.3	69.0	85	30
