Rough Polyurethane Round Belt Textile Machines 85A Low compression

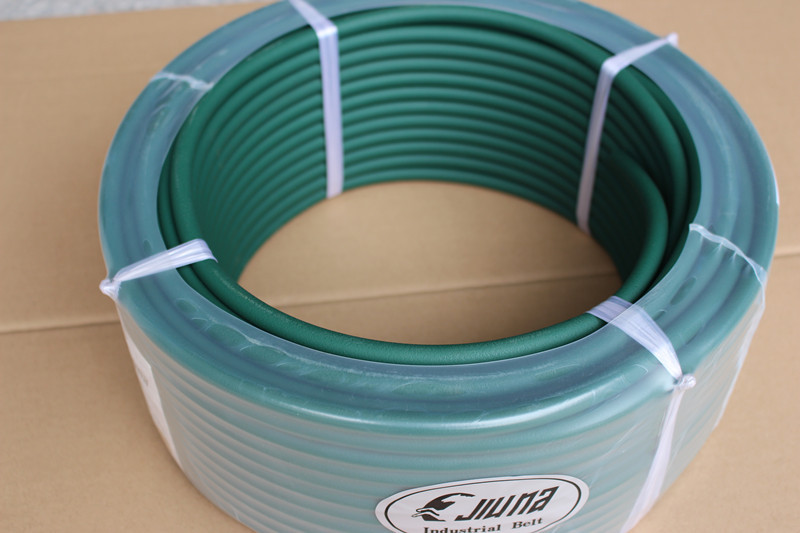

Gambar besar : Rough Polyurethane Round Belt Textile Machines 85A Low compression

Detail produk:

Place of Origin:	wuxi city of china
Nama merek:	jiuna
Sertifikasi:	ROHS
Model Number:	dia 12 mm

Syarat-syarat pembayaran & pengiriman:

Minimum Order Quantity:	10 rolls
Packaging Details:	Inner packing is plastic film .outer packing is carton
Delivery Time:	Within 5 working days After receipt of your deposit
Payment Terms:	T/T, 50% payment in advance ,50% balance before shipment ; Western Union
Supply Ability:	95.000 meters per Month

Kontak

Detil Deskripsi produk

hardness:	85A	least radius gyration:	2.95 in
material:	PU	color:	green
length:	30m/roll	Type:	PU roungh round belt
Cahaya Tinggi:	PU sabuk diekstrusi , sabuk putaran hijau

Rough Polyurethane Round Belt Textile Machines 85A Low compression
Features:
Outstanding abrasion resistance
High tensile and tear strength
Resistance to oils, fuels,and oxygen
Good weatherability and high impact resistance
Low compression set

Application:

Newspaper conveying,

Packing machines,

Ceramic and stoneware processing plants,

Floor and roof tiles conveying,

Wood Working machineries,

Textile machines,

Paper industry machines,

Food grading machines, other food processing machines.

supply the connecting tools & Accessories for polyurethane belts , include clamp ,the Electric Iron and Knife , Connecting methods is hotpress welding , overlap welding .
The very elastic and flexible material PU 85 A ~90 A is particularly suitable for lead in conveyors and vertical shafts .

Items NO.Φ	Least radius of gyration		Stretching rate	Maximum tensile rate		Hardness	Length of rolled
DIA(mm)	In	mm	%	Kg	Lbs	Shore( A)	Length of rolled
2mm	0.79	20	1.5-3%	0.3	0.7	95	400
2.5mm	0.87	22	1.5-3%	0.4	0.9	95	400
3mm	0.98	25	1.5-3%	0.7	1.6	90	400
3.5mm	1.18	30	1.5-3%	0.95	2.1	90	400
4mm	1.38	35	1.5-3%	1.2	2.7	90	200
5mm	1.57	40	1.5-3%	2.0	4.3	90	100
6mm	1.97	50	1.5-3%	3.2	7.0	90	100
7mm	2.17	55	1.5-3%	4.1	9.0	90	100
8mm	2.56	65	1.5-3%	5.0	11.0	90	100
9mm	2.95	75	1.5-3%	6.8	15.0	90	50
10mm	2.95	75	1.5-3%	7.7	17.0	90	50
12mm	3.94	100	1.5-3%	12.2	27.0	90	30
15mm	4.72	120	1.5-3%	17.7	39.0	90	30
18mm	5.71	145	1.5-3%	25.4	56.0	90	30
20mm	6.30	160	1.5-3%	31.3	69.0	90	30
