Abrasion Resistant Polyurethane Round Belt Dark Green 85A - 90A

Cina Wuxi Jiunai Polyurethane Products Co., Ltd Sertifikasi
Cina Wuxi Jiunai Polyurethane Products Co., Ltd Sertifikasi
Customer satisfaction products , good service !

—— Mr. Alcioni possamai

we are very impressed with the quality of the belts you produced.

—— Mr.Mike

your products are very popular in my markets.

—— Mr. jone

I 'm Online Chat Now

Abrasion Resistant Polyurethane Round Belt Dark Green 85A - 90A

Abrasion Resistant Polyurethane Round Belt Dark Green 85A - 90A
Abrasion Resistant Polyurethane Round Belt Dark Green 85A - 90A Abrasion Resistant Polyurethane Round Belt Dark Green 85A - 90A Abrasion Resistant Polyurethane Round Belt Dark Green 85A - 90A Abrasion Resistant Polyurethane Round Belt Dark Green 85A - 90A

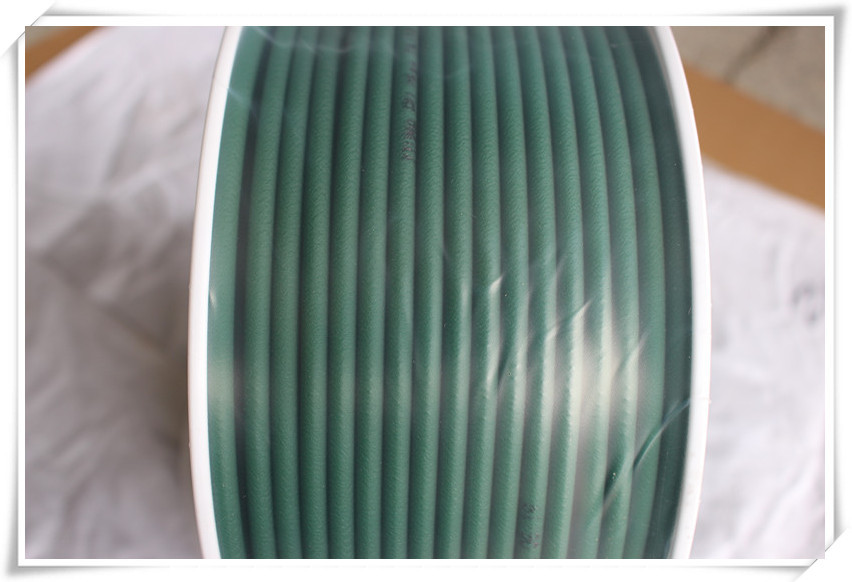

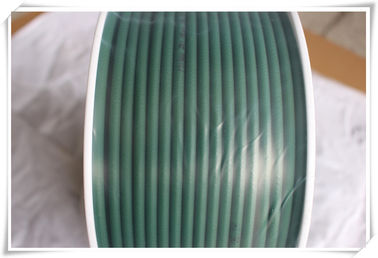

Gambar besar :  Abrasion Resistant Polyurethane Round Belt Dark Green 85A - 90A

Detail produk:
Place of Origin: China
Nama merek: jiuna
Sertifikasi: ROHS
Model Number: Diameter 2mm~20mm
Syarat-syarat pembayaran & pengiriman:
Minimum Order Quantity: 10rolls
Packaging Details: Inner packing is plastic film .outer packing is carton .
Delivery Time: Within 5 working days After receipt of your deposit
Payment Terms: T/T, 50% payment in advance ,50% balance before shipment ; Western Union ; L/C
Supply Ability: 96.000 meters per Month
Detil Deskripsi produk
color: green material: PU
longth: 300m/roll 200m/roll 100m/roll 30m/roll hardness: 85A-90A
tensile rate: 0.3kg-31.3kg Tensile Strength: 55N/mm2
Cahaya Tinggi:

pu round belt

,

PU sabuk diekstrusi

Abrasion Resistant Polyurethane Round Belt Dark Green 85A - 90A

Detailed Product Description:

PU Cord Belt Application :

1. Wall floor tile conveying industrial line

2. printing and packing machine

3. food & beverage processing

4. wood processing

5. paper processing

6. electronic

7. post service

8. tobacco transmission line

PU Cord Properties :

-Excellent abrasion resistance.

-Good resistance to fuel , oils and oxygen.

-Contains no plasticizer.

-Wide application temperature from -30℃~+80℃



Transmission PU Rough Round Belt ; Polyurethane Round Belt, PU Smooth Round Belt,

 PU Rough Round Belt

Details:

(1)Thermoplastic polyurethane material, easy to be melted jointed

(2)Reinforced by Polyester Cord or Steel Cord

(3)Temperature range -35°C - 80°C

(4)Shore A hardness range 80A - 98A

(5)With excellent resistance to flex, abrasion resistance, easy jointed and other characteristics.

 Widely used in textile, packaging, printing, machinery, electronic, glass, chemicals, ceramics

 and other industries, especially in the ceramic industry, widely used in the facilities line

the glaze, polishing lines, and transmission line.

(6)Round Belt:

Round Belt Dia. is from 2mm to 30mm

Smooth Belt with good surface finish; Rough belt with even surface roughness. They are used

widely.

PU Round belt with reinforcement





Items No. φ least radius of gyration stretch rate Maximum tensile rate Hardness length of rolled

DIA

(mm)

In mm Stretching rate Kg Lbs

Hardness

(A)

Roll

(m)

2 0.79  20 1.5-3% 0.3 0.7 90 400
3 0.98 25 1.5-3% 0.7 1.6 90 400
4 1.38 35 1.5-3% 1.2 2.7 85 200
5 1.57 40 1.5-3% 2.0 4.3 85 100
6 1.97 50 1.5-3% 3.2 7.0 85 100
7 2.17 55 1.5-3% 4.1 9.0 85 100
8 2.56 65 1.5-3% 5.0 11.0 85 100
9 2.95 75 1.5-3% 6.8 15.0 85 50
10 2.95 75 1.5-3% 7.7 17.0 85 50
12 3.94 100 1.5-3% 12.2 27.0 85 30
15 4.72 120 1.5-3% 17.7 39.0 85 30
18 5.71 145 1.5-3% 25.4 56.0 85 30
20 6.30 160 1.5-3% 31.3 69.0 85

30







Abrasion Resistant Polyurethane Round Belt Dark Green 85A - 90A 0Abrasion Resistant Polyurethane Round Belt Dark Green 85A - 90A 1Abrasion Resistant Polyurethane Round Belt Dark Green 85A - 90A 2Abrasion Resistant Polyurethane Round Belt Dark Green 85A - 90A 3
