Dark green rough power transmission belts For Agricultural machine

  • Dark green rough power transmission belts For Agricultural machine
  • Dark green rough power transmission belts For Agricultural machine
  • Dark green rough power transmission belts For Agricultural machine
  • Dark green rough power transmission belts For Agricultural machine
Place of Origin China
Nama merek jiuna
Sertifikasi ROHS
Model Number Diameter 2mm~20mm
Minimum Order Quantity 10rolls
Packaging Details Inner packing is plastic film .outer packing is carton .
Delivery Time Within 5 working days After receipt of your deposit
Payment Terms T/T, 50% payment in advance ,50% balance before shipment ; Western Union ; L/C
Supply Ability 96.000 meters per Month

Hubungi saya untuk sampel gratis dan kupon.

ada apa:0086 18588475571

Wechat wechat: 0086 18588475571

Skype: sales10@aixton.com

Jika Anda memiliki masalah, kami menyediakan bantuan online 24 jam.

x
Detail produk
color green material PU
longth 300m/roll 200m/roll 100m/roll 30m/roll hardness 85A-90A
tensile rate 0.3kg-31.3kg Tensile Strength 55N/mm2
Menyoroti

pu round belt

,

sabuk putaran hijau
Tinggalkan pesan
Deskripsi Produk

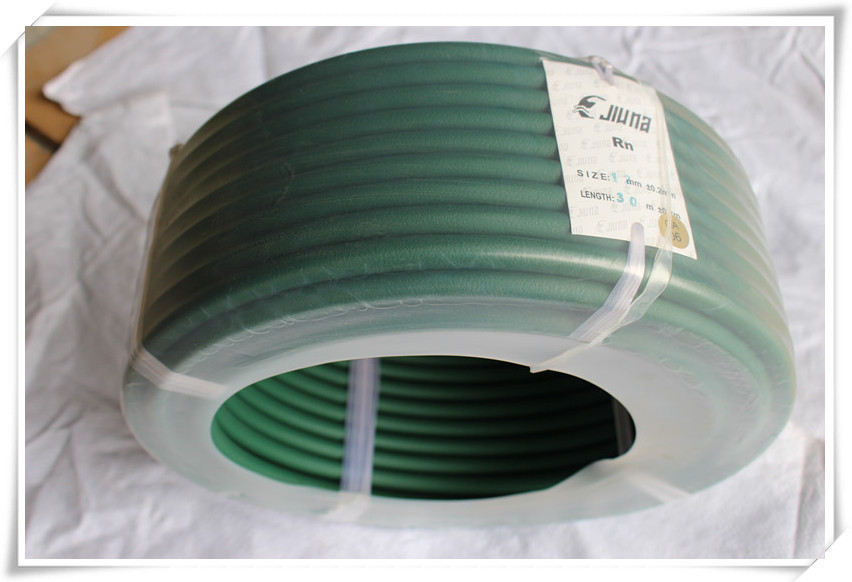

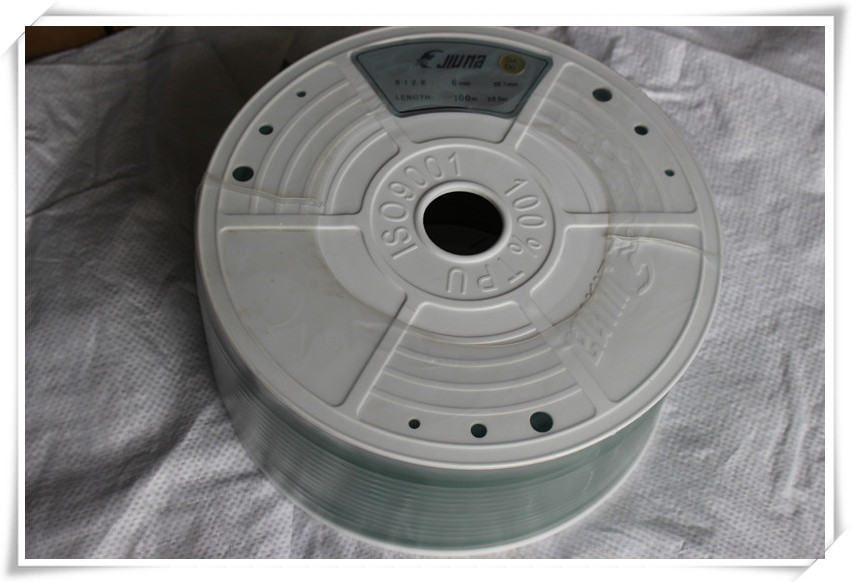

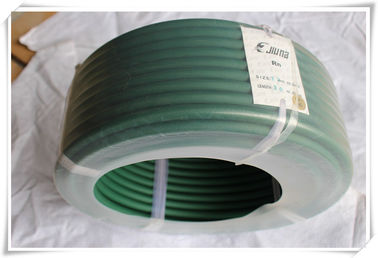

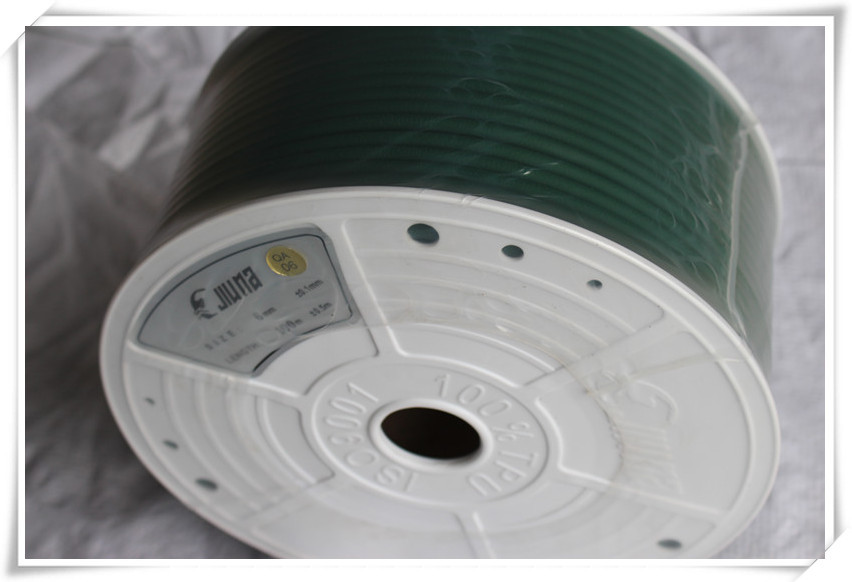

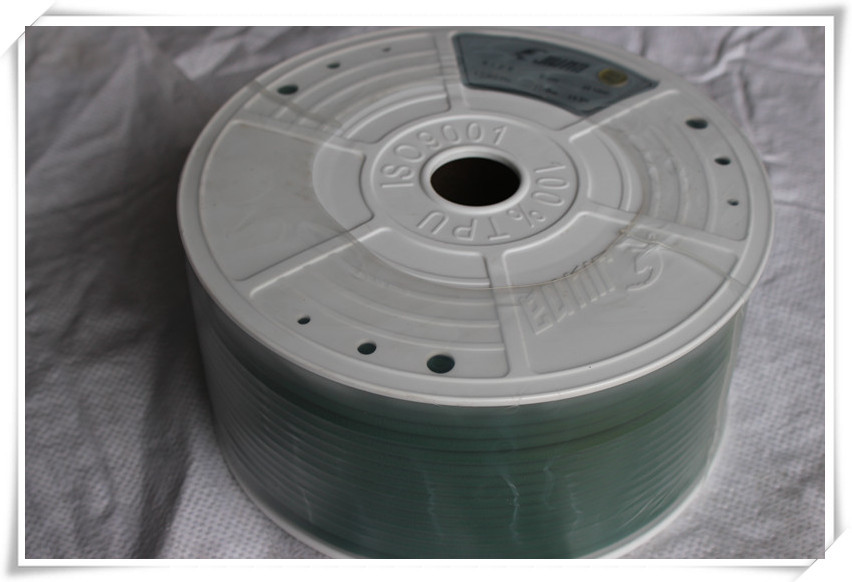

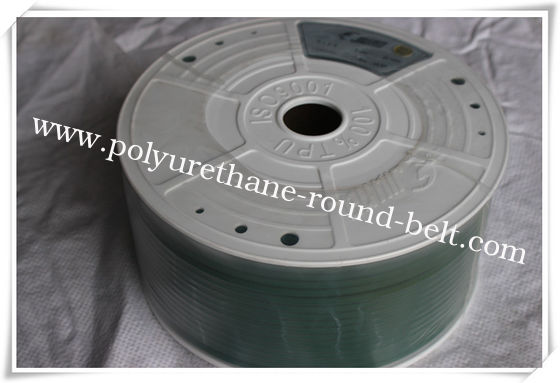

Dark green rough power transmission belts For Agricultural machine

Detailed Product Description:

Features:

1) made of PU material, easy to be joint at high heat.

2) Available to add nylon cord or steel cord

3) Tolerant temperturer: -35℃--80℃

4) High capacity on wear-resistance, flexibity. Wildly applied in varies industries such as textile, package, printing, machinery, electricity electronics, glass,ceramics, ESPECIALLY in ceramic/marble, they are welcome in the polishing& glazing .

5) Round belt:

 a:  diameter: 2mm--30mm

b:  surface: vivid color with glossy surface; neat granule spread fairly for rough surface type.

Features:

Outstanding abrasion resistance
High tensile and tear strength
Resistance to oils, fuels,and oxygen
Good weatherability and high impact resistance
Low compression set

Application:

Newspaper conveying,
Packing machines,
Ceramic and stoneware processing plants,
Floor and roof tiles conveying,
Wood Working machineries,
Textile machines,
Paper industry machines,
Food grading machines, other food processing machines.





Items No. φ least radius of gyration stretch rate Maximum tensile rate Hardness length of rolled

DIA

(mm)

 In mm Stretching rate Kg Lbs

Hardness

(A)

Roll

(m)
2 0.79  20 1.5-3% 0.3 0.7 90 400
3 0.98 25 1.5-3% 0.7 1.6 90 400
4 1.38 35 1.5-3% 1.2 2.7 85 200
5 1.57 40 1.5-3% 2.0 4.3 85 100
6 1.97 50 1.5-3% 3.2 7.0 85 100
7 2.17 55 1.5-3% 4.1 9.0 85 100
8 2.56 65 1.5-3% 5.0 11.0 85 100
9 2.95 75 1.5-3% 6.8 15.0 85 50
10 2.95 75 1.5-3% 7.7 17.0 85 50
12 3.94 100 1.5-3% 12.2 27.0 85 30
15 4.72 120 1.5-3% 17.7 39.0 85 30
18 5.71 145 1.5-3% 25.4 56.0 85 30
20 6.30 160 1.5-3% 31.3 69.0 85

30
