Green Transparent Polyurethane drive belt smooth and rough surface

Cina Wuxi Jiunai Polyurethane Products Co., Ltd Sertifikasi
Cina Wuxi Jiunai Polyurethane Products Co., Ltd Sertifikasi
Customer satisfaction products , good service !

—— Mr. Alcioni possamai

we are very impressed with the quality of the belts you produced.

—— Mr.Mike

your products are very popular in my markets.

—— Mr. jone

I 'm Online Chat Now

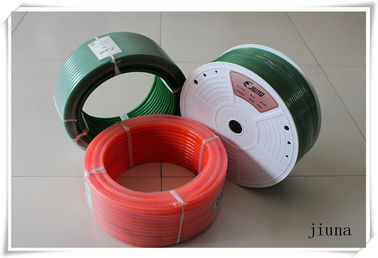

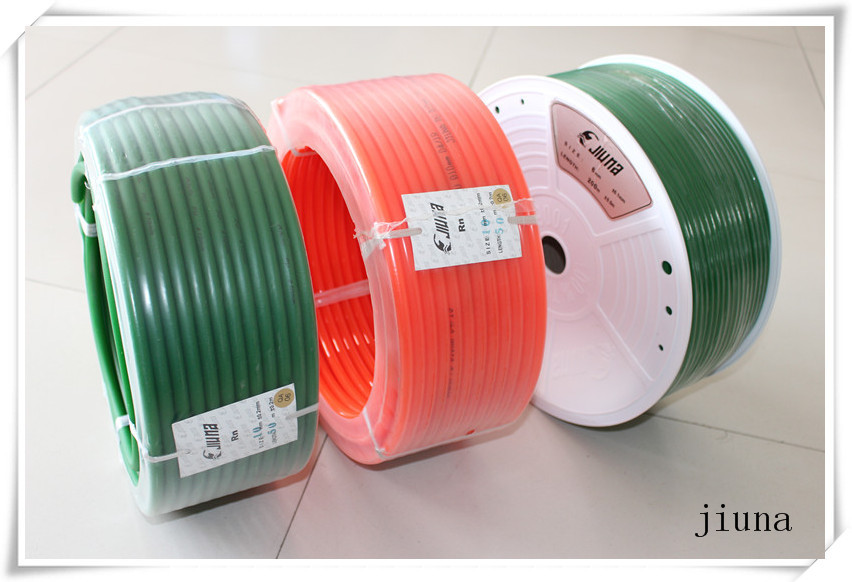

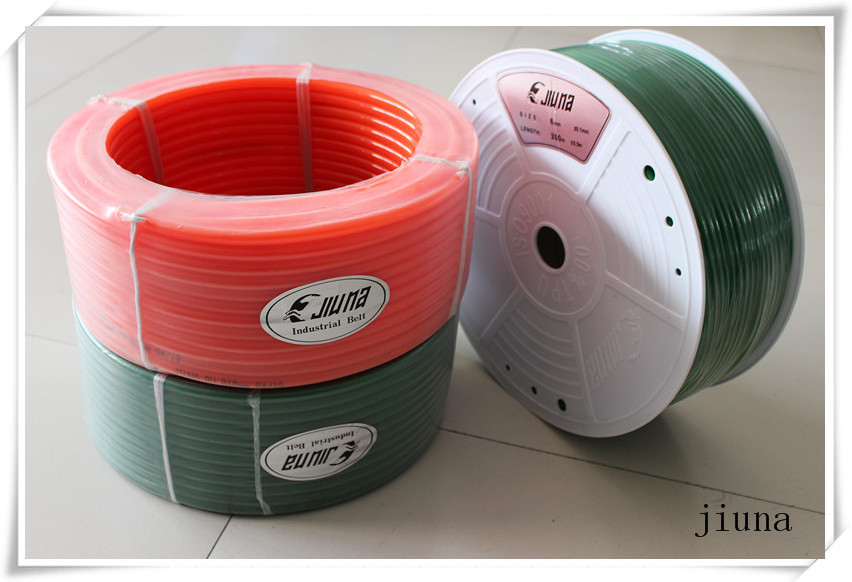

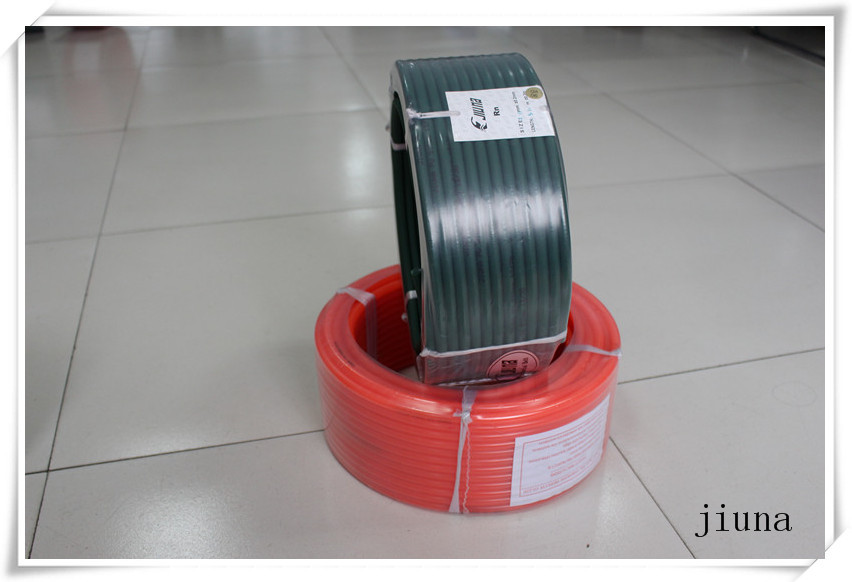

Green Transparent Polyurethane drive belt smooth and rough surface

Green Transparent Polyurethane drive belt smooth and rough surface
Green Transparent Polyurethane drive belt smooth and rough surface Green Transparent Polyurethane drive belt smooth and rough surface Green Transparent Polyurethane drive belt smooth and rough surface Green Transparent Polyurethane drive belt smooth and rough surface

Gambar besar :  Green Transparent Polyurethane drive belt smooth and rough surface

Detail produk:
Place of Origin: china
Nama merek: jiuna
Sertifikasi: ROHS
Model Number: Diameter 2mm-20mm
Syarat-syarat pembayaran & pengiriman:
Minimum Order Quantity: 10 rolls
Packaging Details: Inner packing is plastic film .outer packing is carton
Delivery Time: Within 5 working days After receipt of your deposit
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 100.000 meters per Month
Detil Deskripsi produk
hardness: 85A color: green orange
stretching rate: 1.5-3% Type: PU round belt
material: PU length: 400m/roll 300m/roll 200m/roll 100m/roll 30m/roll
Character: Heat resistance
Cahaya Tinggi:

pu round belt

,

PU sabuk diekstrusi

Features:
1) made of PU material, easy to be joint at high heat.
2) Available to add nylon cord or steel cord
3) Tolerant temperturer: -35℃--80℃
4) High capacity on wear-resistance, flexibity. Wildly applied in varies industries such as
textile, package, printing, machinery, electricity electronics, glass,ceramics, ESPECIALLY in
 ceramic/marble, they are welcome in the polishing& glazing .
5) Round belt:
 a:  diameter: 2mm--30mm
b:  surface: vivid color with glossy surface; neat granule spread fairly for rough surface type.


Outstanding abrasion resistance
High tensile and tear strength
Resistance to oils, fuels,and oxygen
Good weatherability and high impact resistance
Low compression set


Application:

Newspaper conveying,
Packing machines,
Ceramic and stoneware processing plants,
Floor and roof tiles conveying,
Wood Working machineries,
Textile machines,
Paper industry machines,
Food grading machines, other food processing machines.


Polyurethane(PU) round belt are available with orange color smooth surface and green color rough surfaces and reinforced nylon, fibers, Kevlar and steel card .It also can jointed belt to o-ring. The diameter range from 2mm-20mm,we have professional worker can help you to jointed belt.
In addition, we also can supply a set of the connecting tools &accessories to you, it’s include to clamp, the electric ion and knife, connecting methods is butt joint and overlap joint.




Items NO.Φ

Least radius of gyration

Stretching rate

Maximum tensile rate

Hardness

Length of rolled

DIA(mm)

 In

mm

  %

Kg

Lbs

Shore( A)

Length of rolled
 ( m )

2mm

0.79

20

1.5-3%

0.3

0.7

95

400

2.5mm

0.87

22

1.5-3%

0.4

0.9

95

400

3mm

0.98

25

1.5-3%

0.7

1.6

90

400

3.5mm

1.18

30

1.5-3%

0.95

2.1

90

400

4mm

1.38

35

1.5-3%

1.2

2.7

90

200

5mm

1.57

40

1.5-3%

2.0

4.3

90

100

6mm

1.97

50

1.5-3%

3.2

7.0

90

100

7mm

2.17

55

1.5-3%

4.1

9.0

90

100

8mm

2.56

65

1.5-3%

5.0

11.0

90

100

9mm

2.95

75

1.5-3%

6.8

15.0

90

50

10mm

2.95

75

1.5-3%

7.7

17.0

90

50

12mm

3.94

100

1.5-3%

12.2

27.0

90

30

15mm

4.72

120

1.5-3%

17.7

39.0

90

30

18mm

5.71

145

1.5-3%

25.4

56.0

90

30

20mm

6.30

160

1.5-3%

31.3

69.0

90

30




Green Transparent Polyurethane drive belt smooth and rough surface 0Green Transparent Polyurethane drive belt smooth and rough surface 1
Service commitment:
“Quality for keeping going ,Credit to win the world”
