Good Weatherability Polyurethane Belting Diameter 3mm - 20mm

  • Good Weatherability Polyurethane Belting Diameter 3mm - 20mm
  • Good Weatherability Polyurethane Belting Diameter 3mm - 20mm
  • Good Weatherability Polyurethane Belting Diameter 3mm - 20mm
  • Good Weatherability Polyurethane Belting Diameter 3mm - 20mm
Place of Origin china
Nama merek jiuna
Sertifikasi ROHS
Model Number Diameter 2mm-20mm
Minimum Order Quantity 10 rolls
Packaging Details Inner packing is plastic film .outer packing is carton
Delivery Time Within 5 working days After receipt of your deposit
Payment Terms L/C, T/T, Western Union, MoneyGram
Supply Ability 100.000 meters per Month

Hubungi saya untuk sampel gratis dan kupon.

ada apa:0086 18588475571

Wechat wechat: 0086 18588475571

Skype: sales10@aixton.com

Jika Anda memiliki masalah, kami menyediakan bantuan online 24 jam.

x
Detail produk
kekerasan 85A warna hijau
tahan panas -30℃~80 Type PU round belt
bahan PU Permukaan kasar
Tingkat peregangan 1,5-3%
Menyoroti

pu sabuk bulat

,

pu sabuk diekstrusi

,

warna hijau sabuk poliuretan bulat
Tinggalkan pesan
Deskripsi Produk



Good Weatherability Polyurethane Belting Diameter 3mm - 20mm


(1) Thermoplastic polyurethane material, easy to be melted jointed,100% pure polyurethane
(2) Reinforced by Polyester Cord or Steel Cord
(3) Temperature range -35 degree - 80 degree
(4) Shore A hardness range 80A - 98A
(5) With excellent resistance to flex, abrasion resistance, easy jointed and other characteristics. Widely used in textile, packaging, printing, machinery, electronic, glass, chemicals, ceramics and other industries, especially in the ceramic industry, widely used in the facilities line the glaze, polishing lines, and transmission line.
(6)  Dia. is from 2mm to 30mm. Smooth Belt with good surface finish; Rough belt with even surface roughness. They are used widely.



Items No. φ least radius of gyration stretch rate Maximum tensile rate Hardness length of rolled

Dia.

(mm)

 In mm Stretching rate Kg Lbs

Hardness

(A)

Roll

(m)
2mm 0.79 20 1.5-3% 0.3 0.7 90 A 400
3mm 0.98 25 1.5-3% 0.7 1.6 90 A 400
4mm 1.38 35 1.5-3% 1.2 2.7 85 A  200
15mm 4.72 120 1.5-3% 17.7 39.0 85 A  30
18mm 5.71 145 1.5-3% 25.4 56.0 85 A 30
20mm 6.30 160 1.5-3% 31.3 69.0 85 A 30



Color: Orange, Red, Dark Green, Ivory, Natural  .

  • Shore Hardness:  Round belt - 87°A ± 2 .
  • Rough surface: Normal Rough / More Rough  .
  • Steel, Glass & Aramid Reinforcement on request.
  • Easily jointed with BCTech's Welding Kits
  • Features:
  • High tensile and tear strength
  • High abrasion resistance
  • Resistant to oil, grease, dust, moisture & most chemicals
  • Temperature Range: -35 ~ 85 Degrees

Products introduction:

Urethane round belts are elastomeric belts for power transmission application.

Having most metric sizes (2mm to 20mm) and standard O-ring sizes.

Polyether and Polyurethane round belts have best resilience of any elastic material.

Polyester product has good wear resistance, its wear resistance is 3.5 times of common

plastic and rubber.

Service commitment:



“ Quality for keeping going ,Credit to win the world”

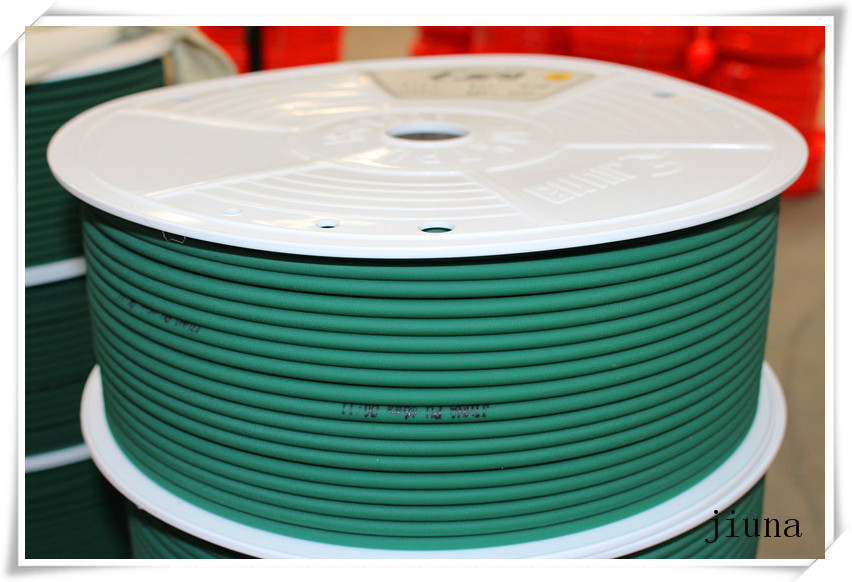

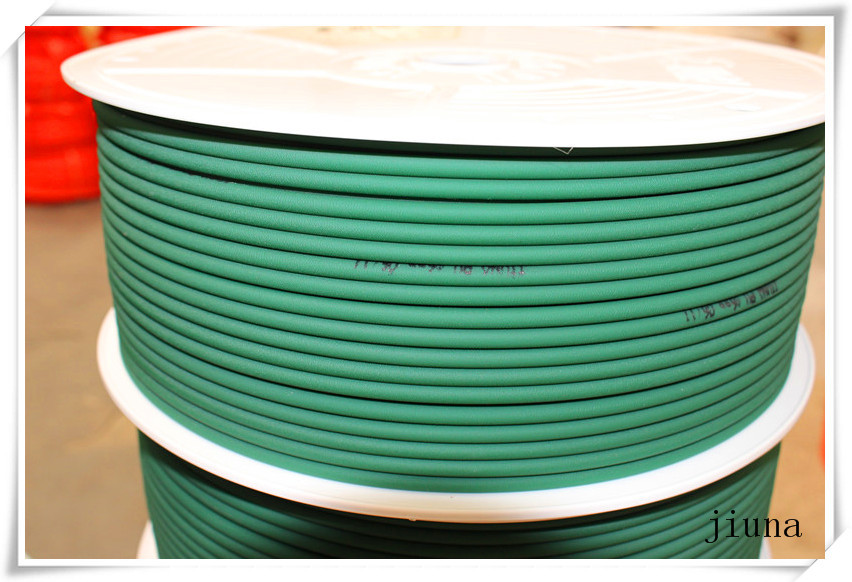

Good Weatherability Polyurethane Belting Diameter 3mm - 20mm 0Good Weatherability Polyurethane Belting Diameter 3mm - 20mm 1

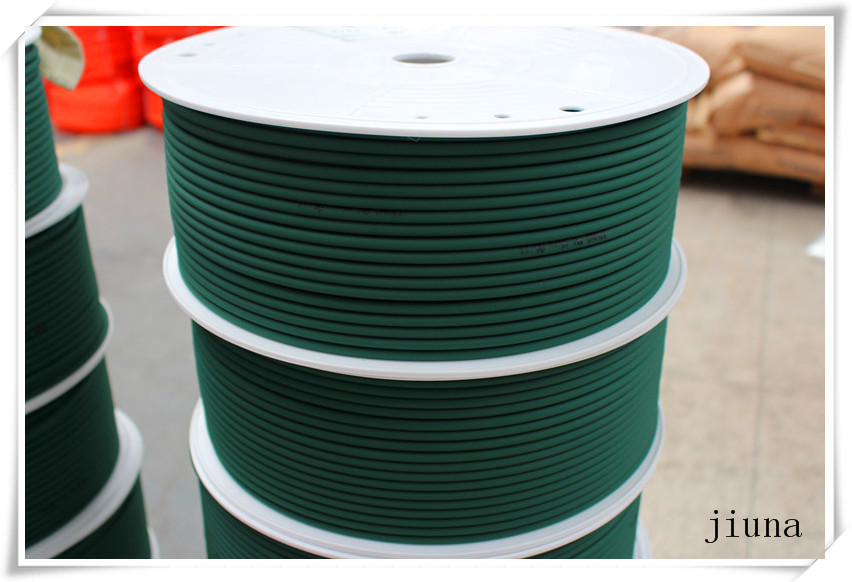

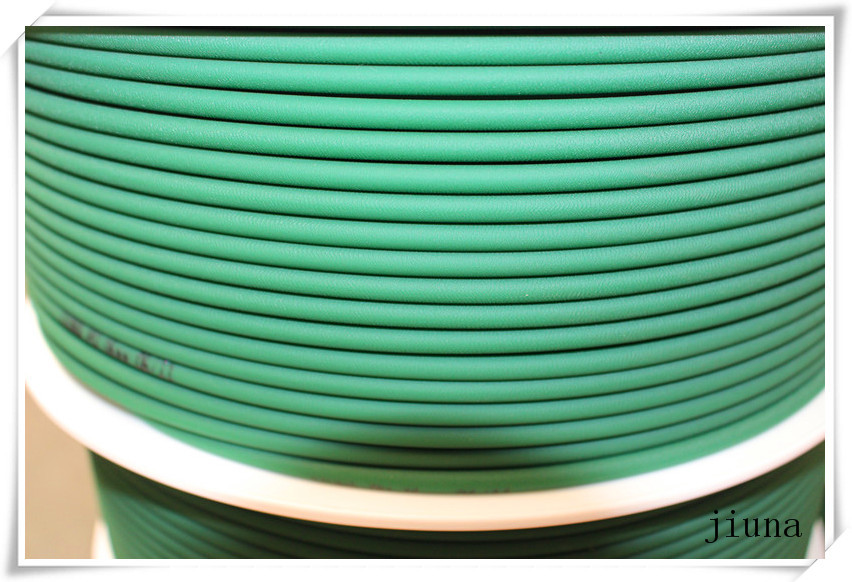

Good Weatherability Polyurethane Belting Diameter 3mm - 20mm 2Good Weatherability Polyurethane Belting Diameter 3mm - 20mm 3
