Driving Polyurethane Round Belt Widely used in textile , surface rough
Detailed Product Description

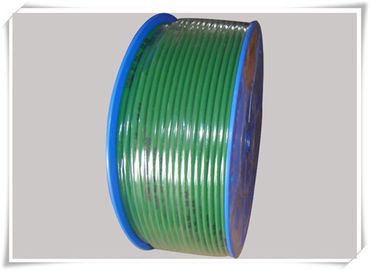

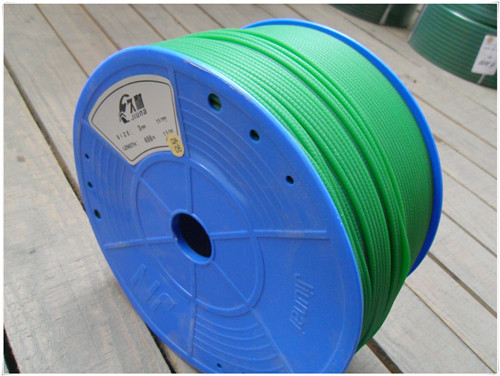

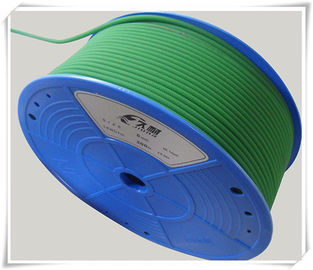

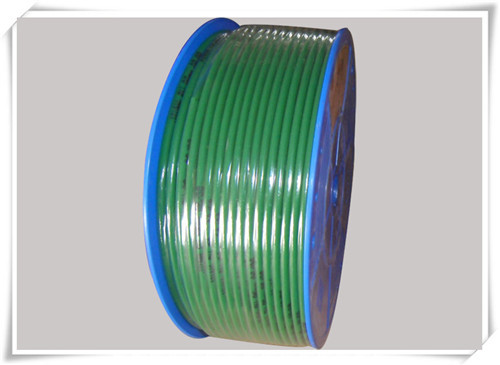

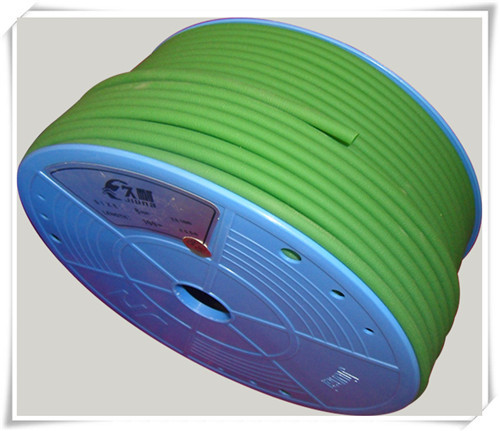

Industrial 12mm Polyurethane Round Belt Orange or Green for Packing Machine
Details:
(1)Thermoplastic polyurethane material, easy to be melted jointed
(2)Reinforced by Polyester Cord or Steel Cord
(3)Temperature range -35°C - 80°C
(4)Shore A hardness range 80A - 98A
(5)With excellent resistance to flex, abrasion resistance, easy jointed and other characteristics. Widely used in textile, packaging, printing, machinery, electronic, glass, chemicals, ceramics and other industries, especially in the ceramic industry, widely used in the facilities line the glaze, polishing lines, and transmission line.
(6)Round Belt:
Round Belt Dia. is from 2mm to20mm
Smooth Belt with good surface finish; Rough belt with even surface roughness. They are used widely.
PU Round belt with reinforcement
polyurethane Round Belts Feature:
1.With excellent bend resistant
2.abrasion/wear resistant
3.easily connected
4.it's not easy to be broken at low temperature
5.fuel and oil resistant
6.anti static
polyurethane round belt Application :
1.Widely used in textile
2. printing and packing machine
3. food & beverage processing
4. wood processing
5.paper processing
6.electronic
7.post service
8.tobacco transmission line
9.Wall floor tile conveying industrial line
10.Ceramic industry line or polishing line
| Items No. φ |
least radius of gyration |
stretch rate |
Maximum tensile rate |
Hardness |
length of rolled |
|
Dia.
(mm)
|
In |
mm |
Stretching rate |
Kg |
Lbs |
Hardness
(A)
|
Roll
(m)
|
| 2mm |
0.79 |
20 |
1.5-3% |
0.3 |
0.7 |
90 A |
400 |
| 3mm |
0.98 |
25 |
1.5-3% |
0.7 |
1.6 |
90 A |
400 |
| 4mm |
1.38 |
35 |
1.5-3% |
1.2 |
2.7 |
85 A |
200 |
| 15mm |
4.72 |
120 |
1.5-3% |
17.7 |
39.0 |
85 A |
30 |
| 18mm |
5.71 |
145 |
1.5-3% |
25.4 |
56.0 |
85 A |
30 |
| 20mm |
6.30 |
160 |
1.5-3% |
31.3 |
69.0 |
85 A |
30 |
|
