Seamless pu belt conveyor Abhesion Resistance , Transmission Belting

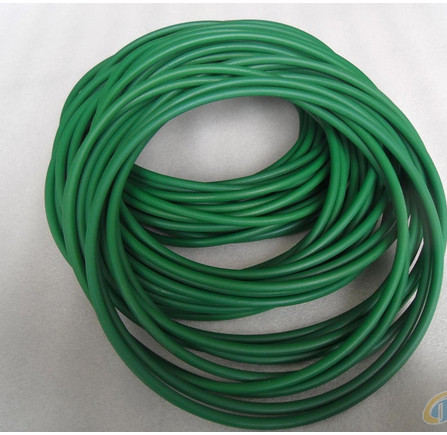

Gambar besar : Seamless pu belt conveyor Abhesion Resistance , Transmission Belting

Detail produk:

Place of Origin:	wuxi city of china
Nama merek:	jiuna
Sertifikasi:	ROHS
Model Number:	diamter 3mm-20mm

Syarat-syarat pembayaran & pengiriman:

Minimum Order Quantity:	500 pcs
Packaging Details:	nner packing is plastic film .outer packing is carton
Delivery Time:	Within 7 working days After receipt of your deposit
Payment Terms:	T/T, Western Union
Supply Ability:	96.000 meters per Month

Kontak

Detil Deskripsi produk

warna:	hijau	bahan:	PU
kekerasan:	70A-95A	suhu sedang tahan panas:	-50 hingga + 85
tingkat peregangan:	1,5-3%	Tipe:	Sabuk bundar yang mulus
pabrik:	wu xi dari cina
Cahaya Tinggi:	pu sabuk diekstrusi , sabuk bulat hijau , Ketahanan Abhesi Sabuk Bulat PU

Seamless pu belt conveyor Abhesion Resistance , Transmission Belting

The very elastic and flexible material PU 85 A ~90 A is particularly suitable for lead in conveyors and vertical shaft.We offer a complete line of Polyester and Polyurethane Round belts for use in industrial machines. And In the conveyance of products ranging from transport machine, convey or machine to glass and tile. Round belts are available with smooth and rough surfaces and reinforced with polyester, nylon or fibers. Also can welding belt to O-ring . supply the connecting tools & Accessories for polyurethane belts , include clamp ,the Electric Iron and Knife , Connecting methods is hot press welding , overlap welding .

Features:

Outstanding abrasion resistance
High tensile and tear strength
Resistance to oils, fuels,and oxygen
Good weatherability and high impact resistance
Low compression set

Application:

Newspaper conveying,
Packing machines,
Ceramic and stoneware processing plants,
Floor and roof tiles conveying,
Wood Working machineries,
Textile machines,
Paper industry machines,
Food grading machines, other food processing machines.

Items NO.Φ	Least radius of gyration		Stretching rate	Maximum tensile rate		Hardness	Length of rolled
DIA(mm)	In	mm	%	Kg	Lbs	Shore( A)	Length of rolled
2mm	0.79	20	1.5-3%	0.3	0.7	95	400
2.5mm	0.87	22	1.5-3%	0.4	0.9	95	400
3mm	0.98	25	1.5-3%	0.7	1.6	90	400
3.5mm	1.18	30	1.5-3%	0.95	2.1	90	400
4mm	1.38	35	1.5-3%	1.2	2.7	90	200
5mm	1.57	40	1.5-3%	2.0	4.3	90	100
6mm	1.97	50	1.5-3%	3.2	7.0	90	100
7mm	2.17	55	1.5-3%	4.1	9.0	90	100
8mm	2.56	65	1.5-3%	5.0	11.0	90	100
9mm	2.95	75	1.5-3%	6.8	15.0	90	50
10mm	2.95	75	1.5-3%	7.7	17.0	90	50
12mm	3.94	100	1.5-3%	12.2	27.0	90	30
15mm	4.72	120	1.5-3%	17.7	39.0	90	30
18mm	5.71	145	1.5-3%	25.4	56.0	90	30
20mm	6.30	160	1.5-3%	31.3	69.0	90	30

Seamless pu belt conveyor Abhesion Resistance , Transmission Belting 0
